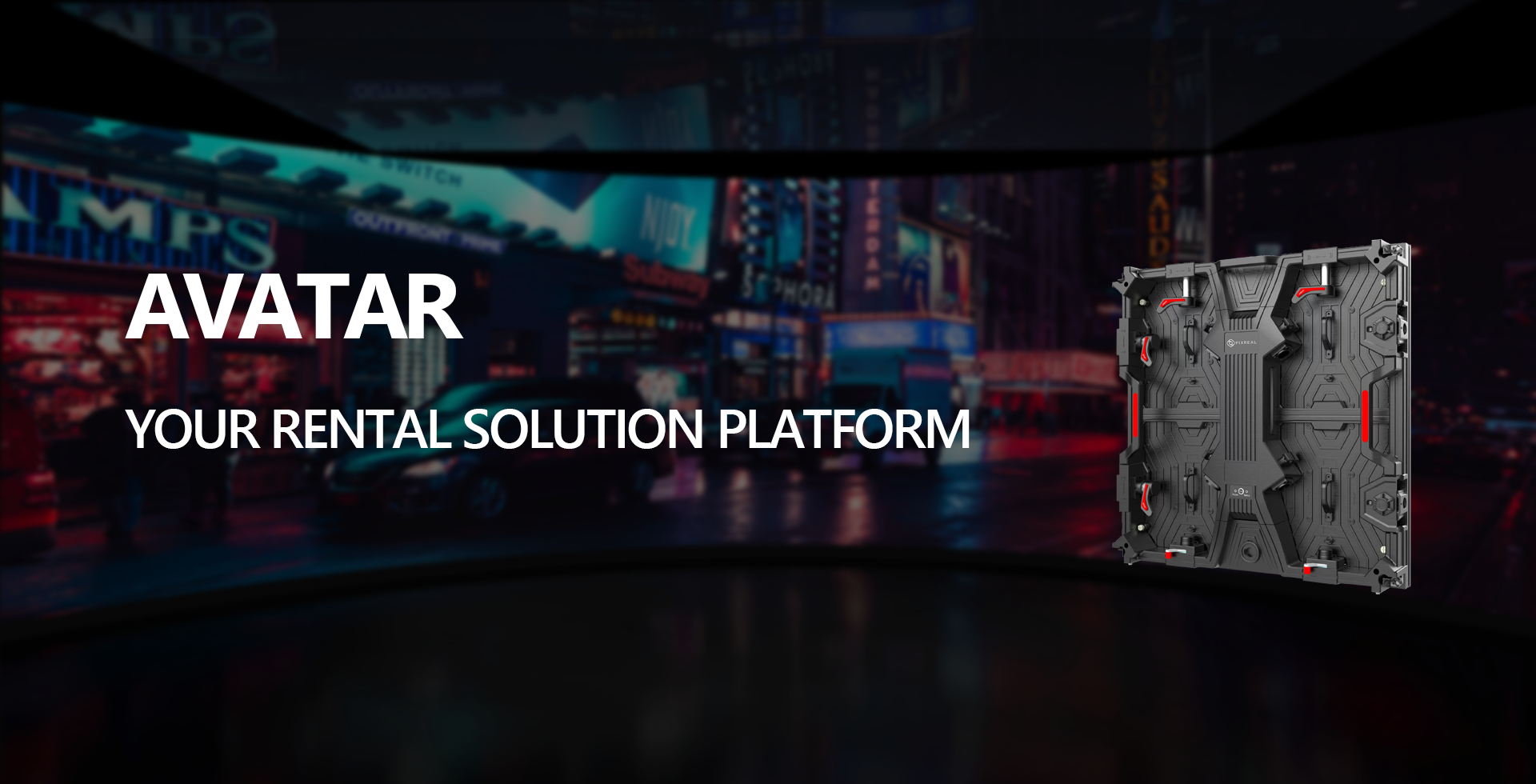

AVATAR SERIES
AVATAR's lightweight, modular design allows for quick and easy setup at any event. Its durable aluminum frame, high-quality LED panels, and intuitive controls enable event organizers to efficiently configure customized image solutions that captivate audiences at stage productions, concerts, trade shows, and other temporary settings.
KEY FEATURES
Light weight panel
Quick installation and dismantlement
Easy maintenance
Modular design
QUICK INSTALLATION & DISMANTLEMENT DESIGN
MODULAR DESIGN
EASY FOR MAINTENANCE
FRONT & REAR SERVICE DESIGN
CONCAVE & CONVEX INSTALLATION
HANGING OR STACKING CONFIGURATION
| MODEL | AVATAR1.9S | AVATAR2.3S | AVATAR2.6S |
|---|---|---|---|
| Pixel Pitch | 1.95mm | 2.31mm | 2.60mm |
| LED Configuration | SMD1212 | SMD1515 | SMD1515 |
| Max Brightness Calibrated | 1200nits | 1200nits | 1200nits |
| Contrast Ratio | ≥5,000:1 | ≥5,000:1 | ≥5,000:1 |
| Panel Dimension (H × V) | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm |
| Panel Resolution (H x V) | 256 x 256 | 216 x 216 | 192 x 192 |
| Power Consumption Max / Average | 160W / 55W | 160W / 55W | 160W / 55W |
| Viewing Angle (H / V) | 140° / 140° | 140° / 140° | 140° / 140° |
| Scan Ratio | 1/16 | 1/12 | 1/16 |
| Refresh Rate | 7,680Hz | 7,680Hz | 7,680Hz |
| Gray Scale | 14bit | 14bit | 14bit |
| Transparency | Solid | Solid | Solid |
| Serviceability | Front / Rear | Front / Rear | Front / Rear |
| Panel Weight | 8.5kg | 8.5kg | 8.5kg |
| Frame Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Processing Platform | Novastar / Colorlight | Novastar / Colorlight | Novastar / Colorlight |
| Operating Environment | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH |
