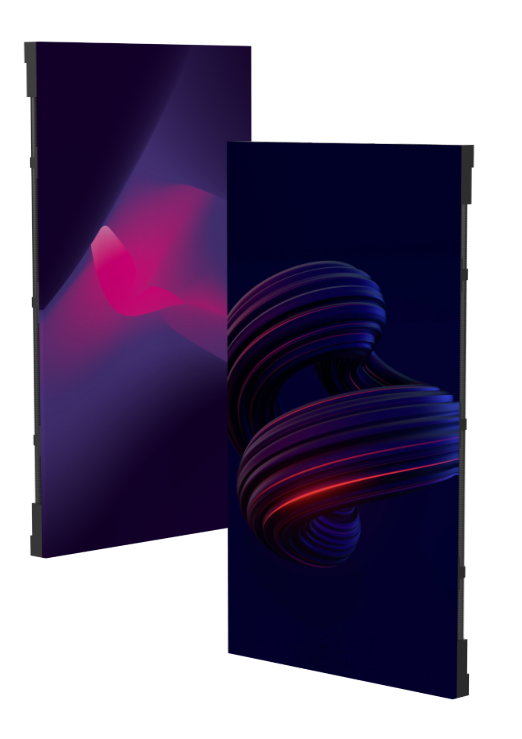

ENZO Product

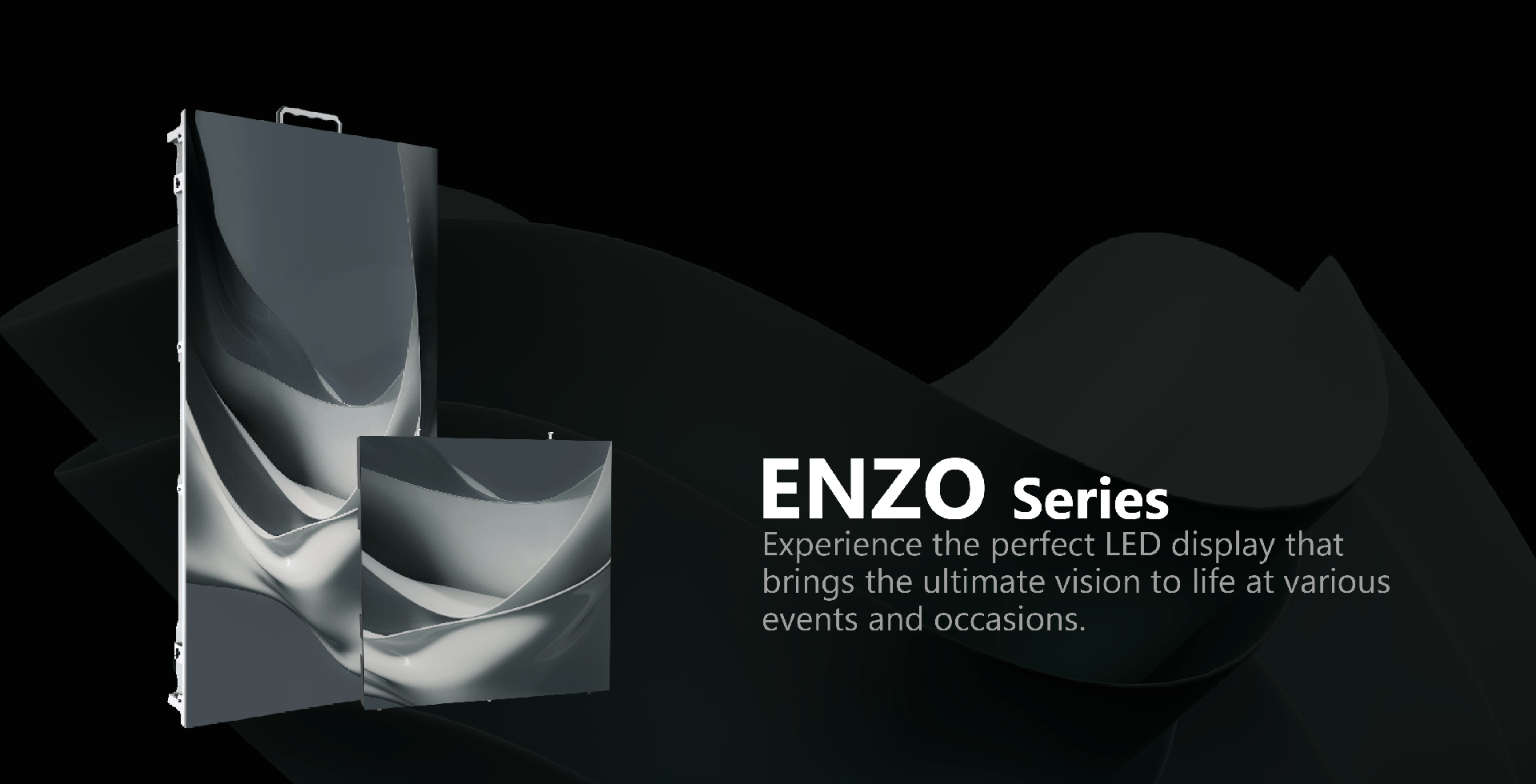

ENZO Series

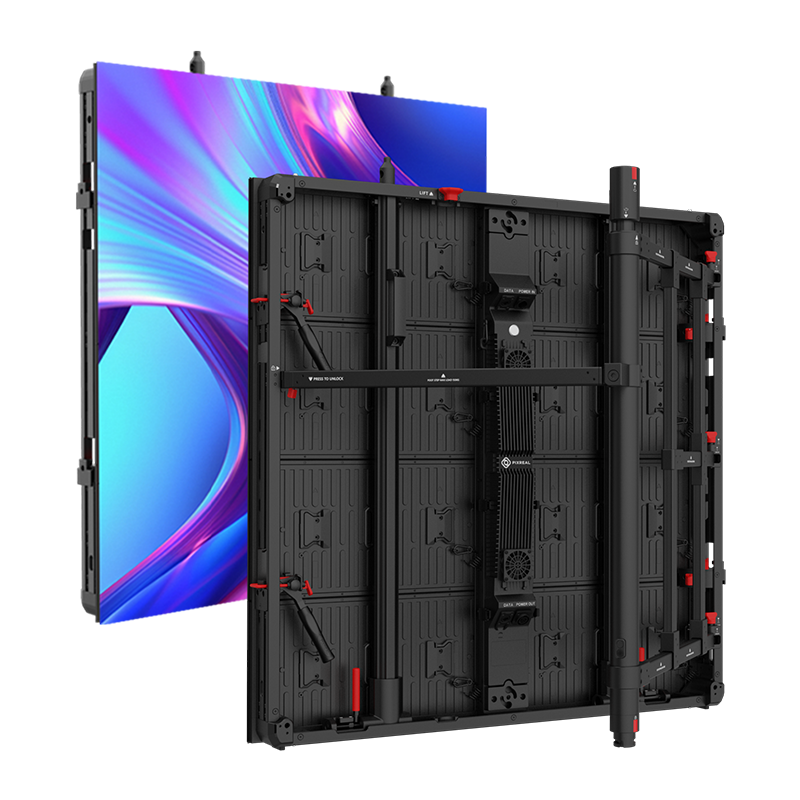

The ENZO Series is the ultimate solution for both indoor and outdoor (live) events. Designed for tours, festivals, and outdoor stages, it combines smart engineering with efficiency to give event organizers, AV rental companies and crews, as well as production professionals the premium LED panels they need.

Made for tours, festivals, and outdoor stages, ENZO pairs smart engineering with real efficiency—giving event organizers, AV rental crews, and production pros the premium LED panels they need, with a standout return on investment.

Flexible, high-performance, and reliable.

ENZO Production

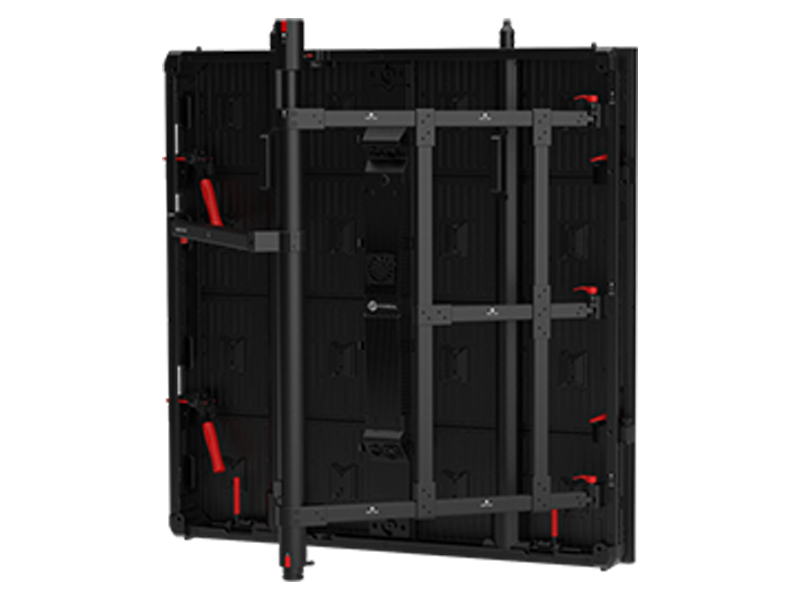

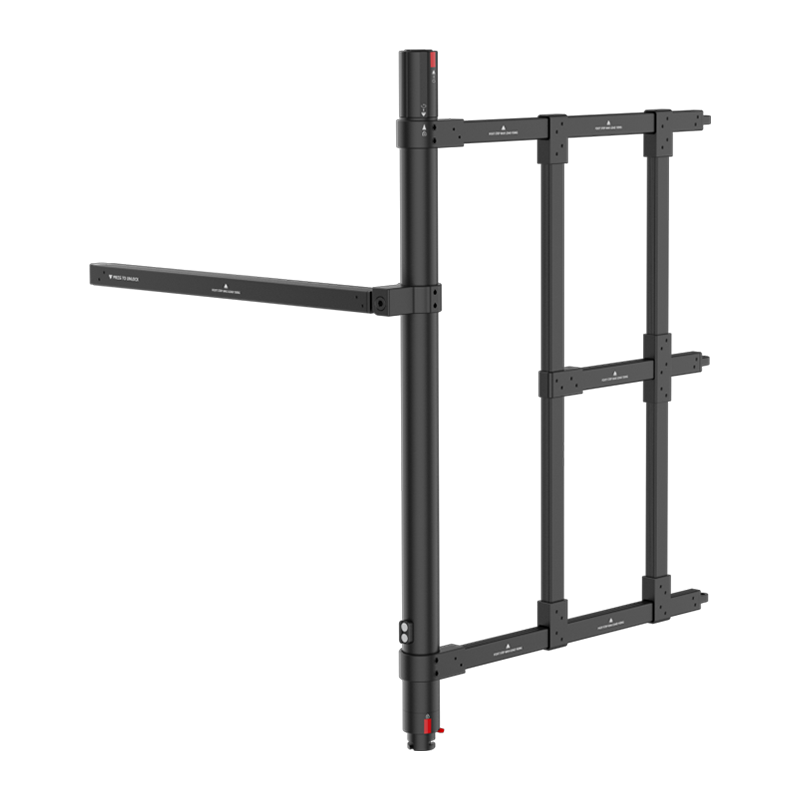

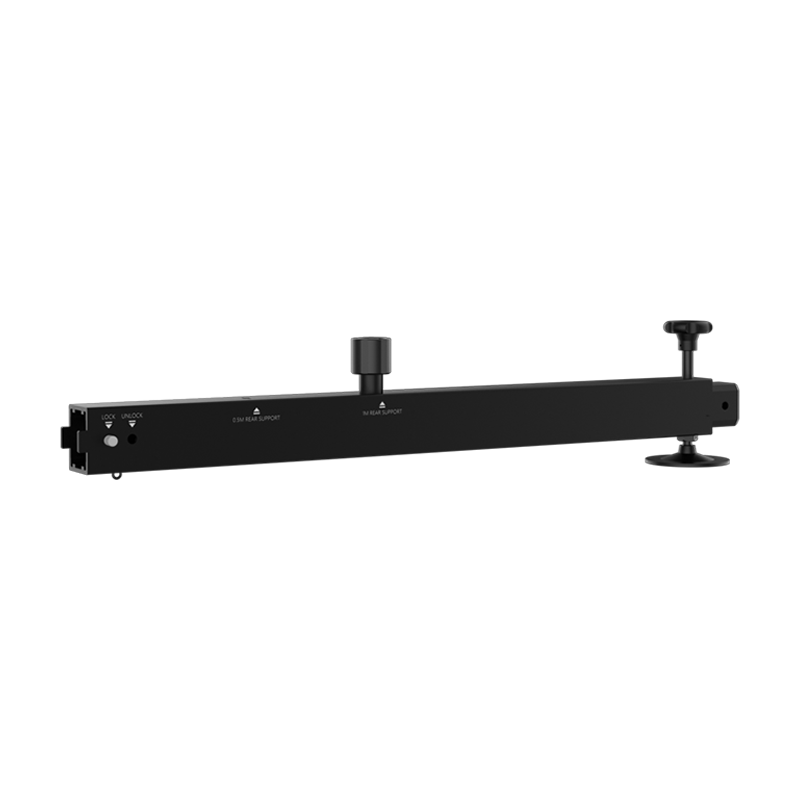

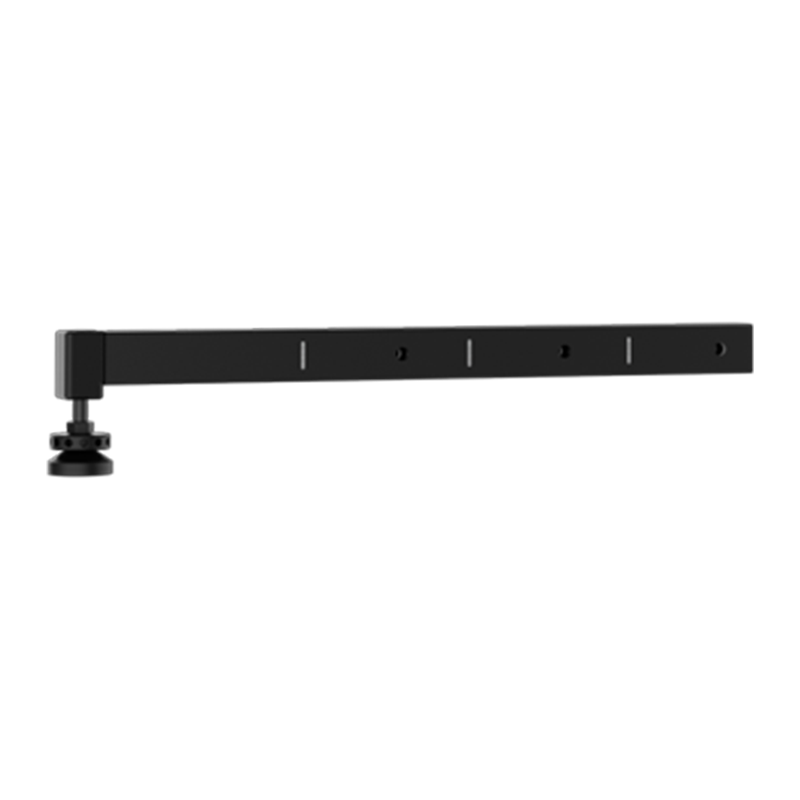

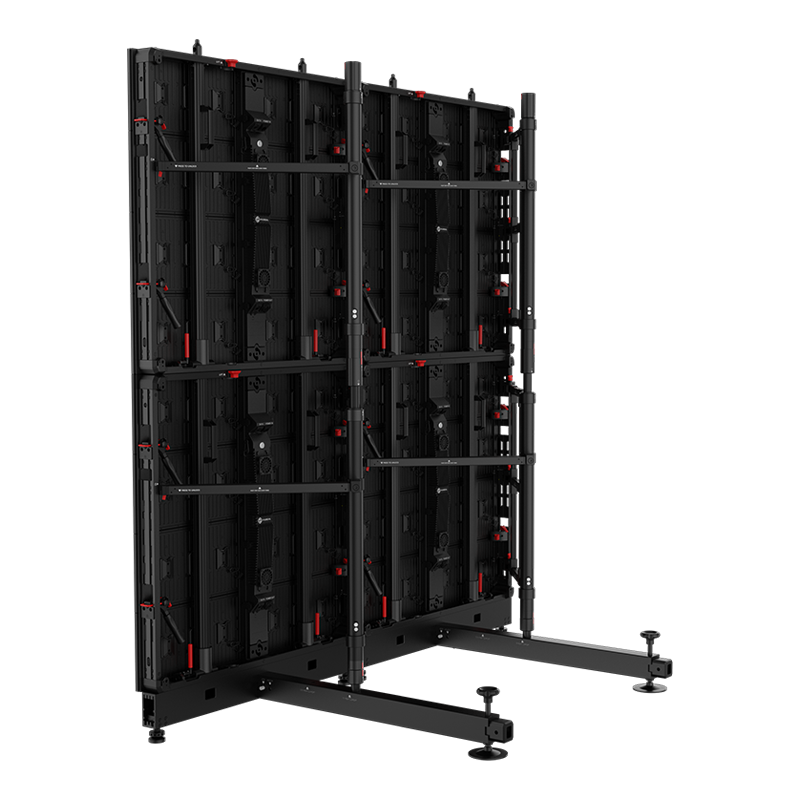

Integrated Wind-Bracing Frames

ENZO’s built-in folding frames mean safety for crowds and solid stability. Concerts, big outdoor events—ENZO handles it all.

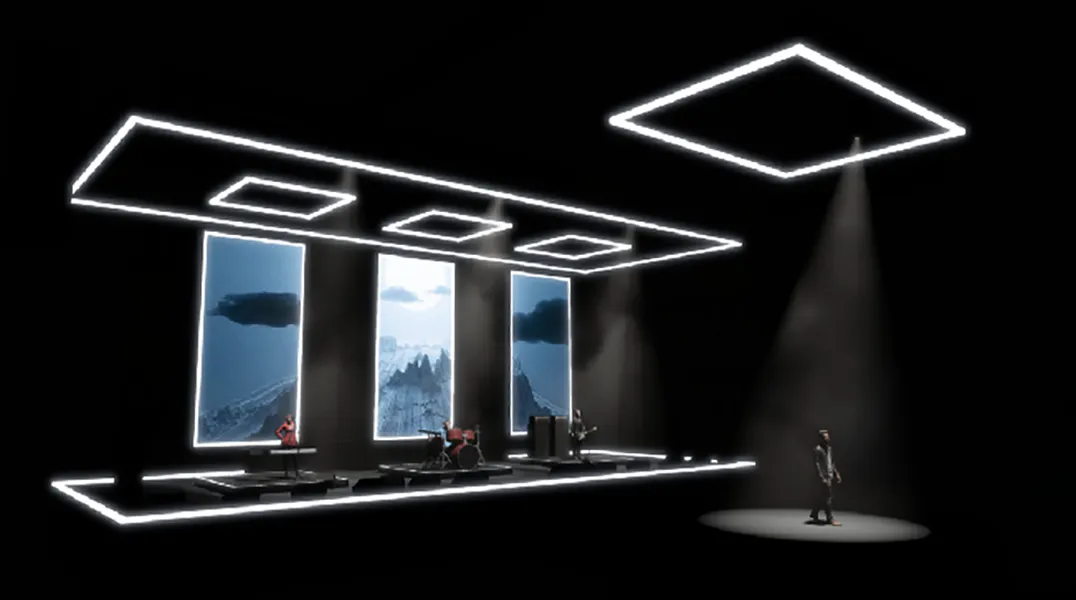

HIRO Studio Scene

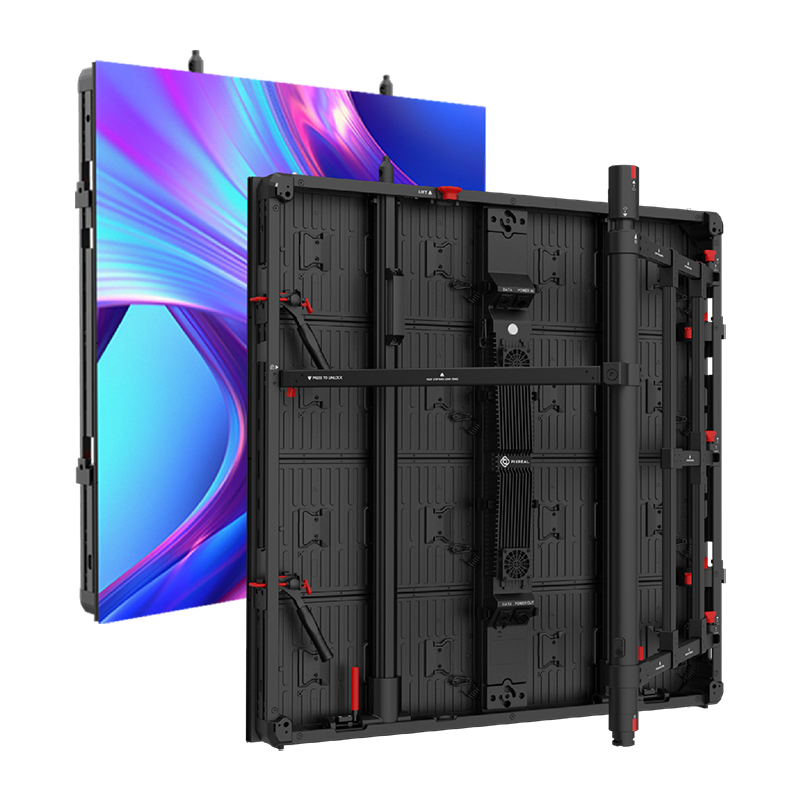

HIRO Product

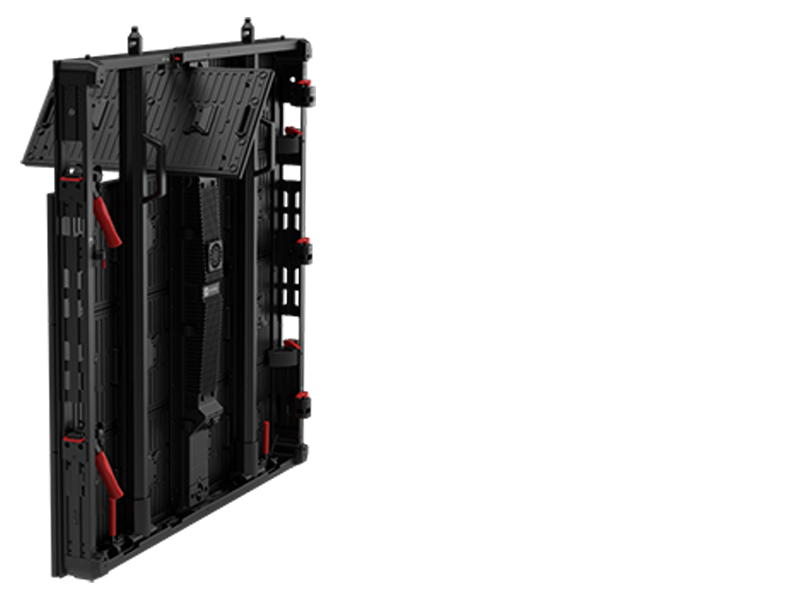

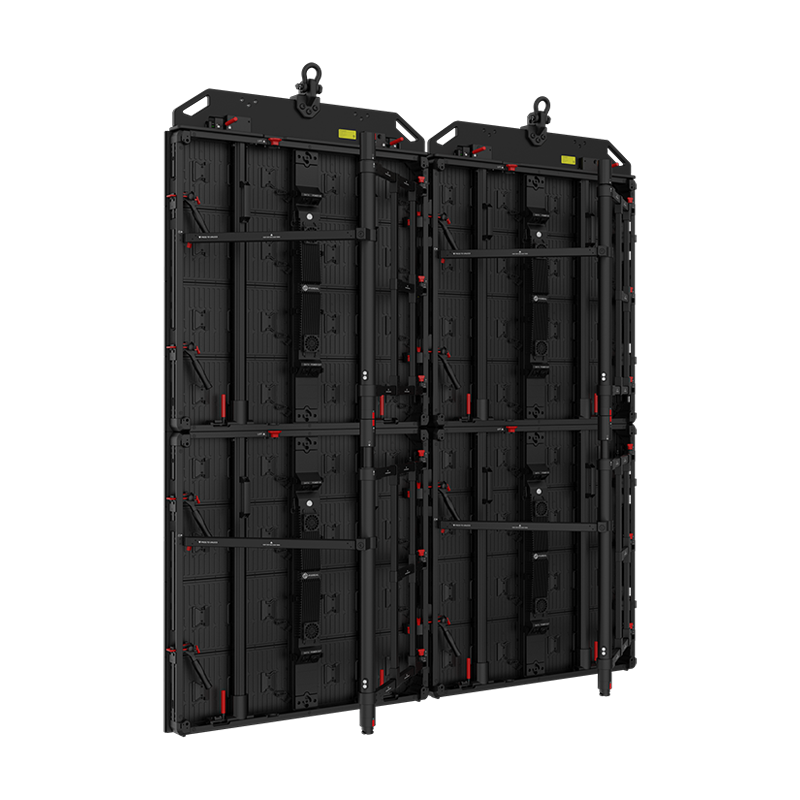

Simplified Maintenance Design

Rear module access makes upkeep straightforward. Integrated PSU and Hub streamline repairs and part replacements, cutting downtime for easy, cost-effective maintenance.

ENZO CL Product

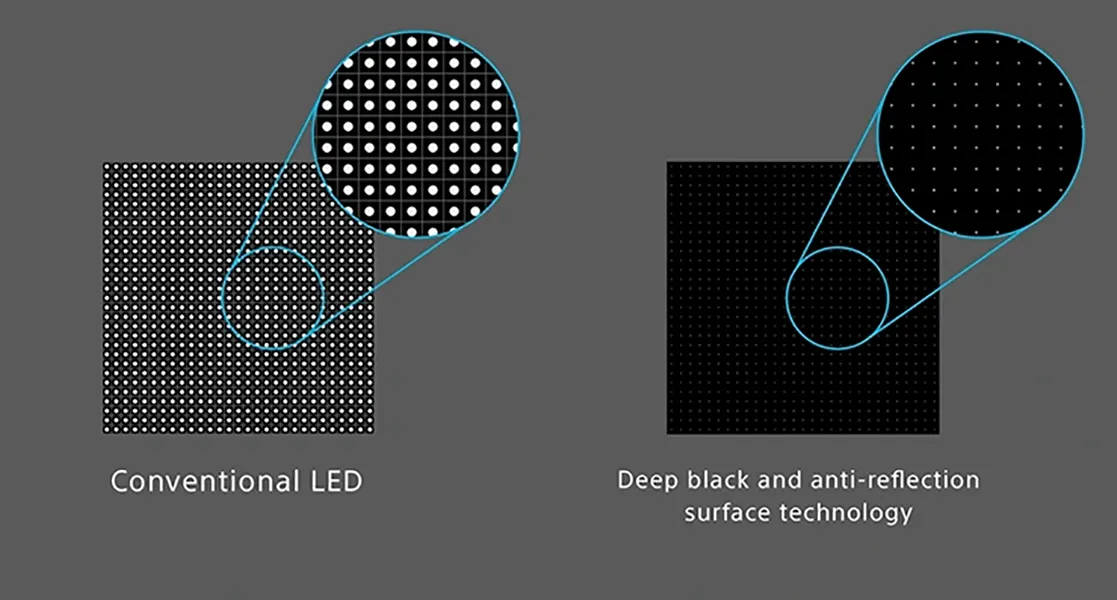

High-contrast Performance

Deep black LED applied and anti-reflection surface technology, with high contrast performance.

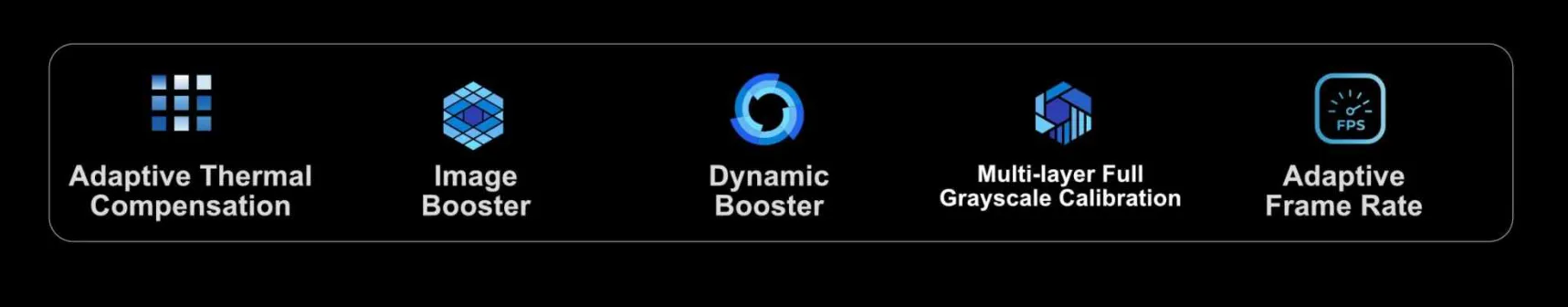

Supports Brompton/Novastar 5G Solutions

ENZO Product

Both Internal and External Curves

ENZO Product
ENZO Product

Steel Edge Protection

It is equipped with steel edge protection, proving super robust.

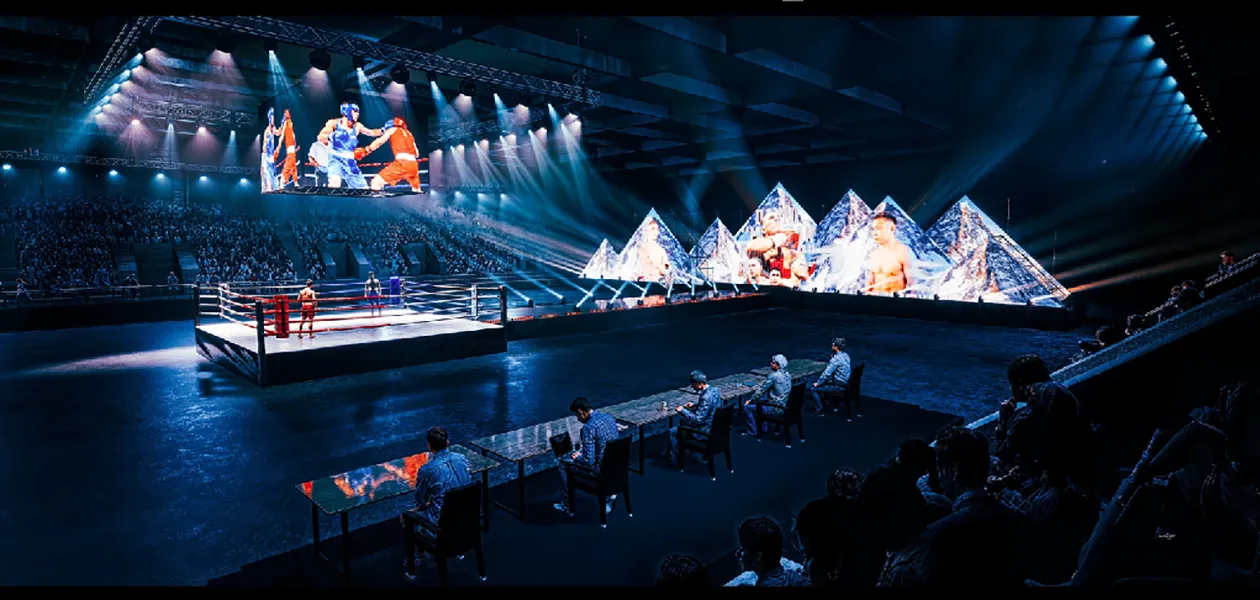

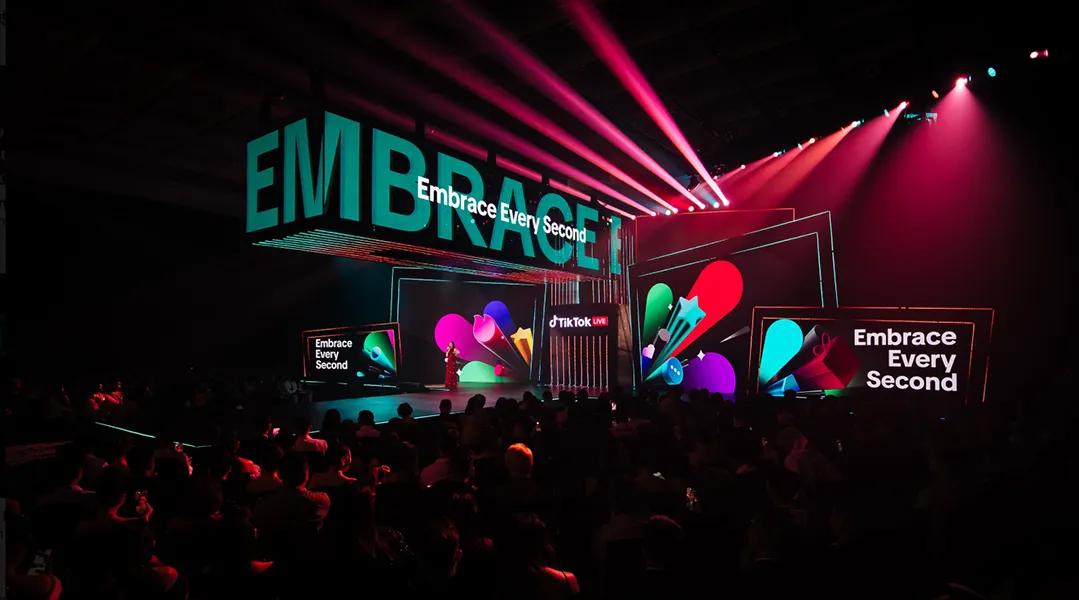

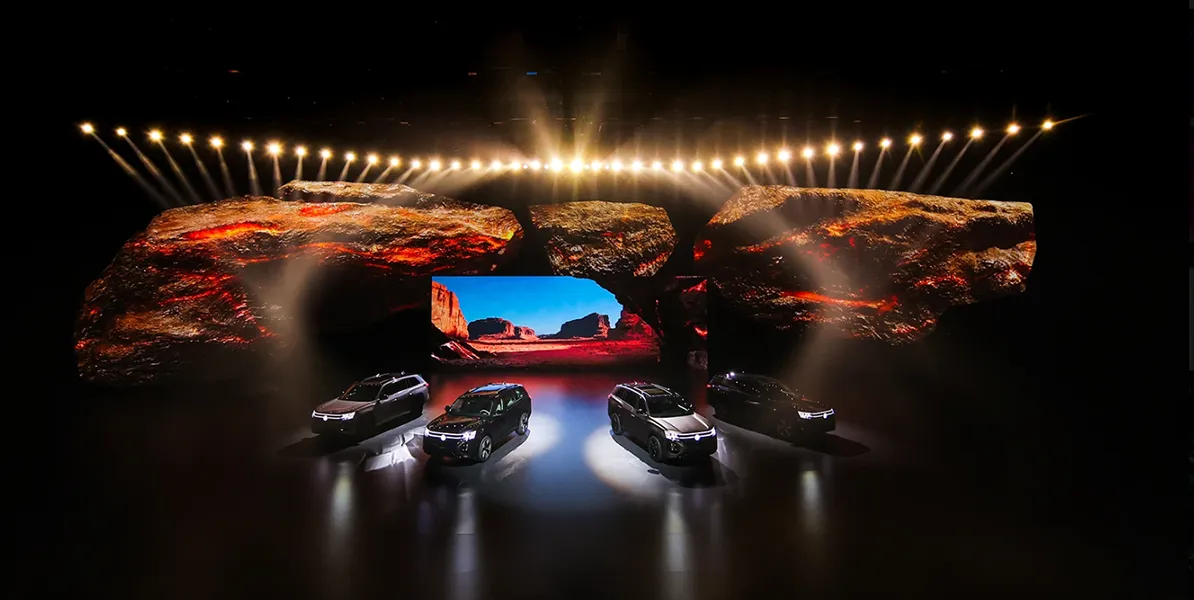

The ENZO Series is built for all kinds of outdoor uses—like ceilings for virtual production, stages, tours, concerts, and sports events.

ENZO Outdoor Event 1
ENZO Outdoor Event 2
ENZO Outdoor Event 3
ENZO Outdoor Event 4
ENZO Outdoor Event 5

Modules available in 4 pixel pitches.

ENZO

ENZ0 Outdoor Series ENZO 3II/3VII/3HII/3QII ENZO 4II/4VII/4HII/4QII ENZO 5II/5VII/5HII/5QII ENZO 8II/8VII/8HII/8QII
Pixel Pitch 3.91mm 4.6mm 5.95mm 8.33mm
Max Brightness Calibrated 4,500nits 4,500nits 4,500nits 4,500nits
Panel Dimension 1,000mm x 1,000mm
1,000mm x 500mm(HII)
500mm x 1,000mm(VII)
500mm x 500mm(QII)
1,000mm x 1,000mm
1,000mm x 500mm(HII)
500mm x 1,000mm(VII)
500mm x 500mm(QII)
1,000mm x 1,000mm
1,000mm x 500mm(HII)
500mm x 1,000mm(VII)
500mm x 500mm(QII)
1,000mm x 1,000mm
1,000mm x 500mm(HII)
500mm x 1,000mm(VII)
500mm x 500mm(QII)
Panel Resolution (H × V) 256 x 256
256 x 128(HII)
128 x 256(VII)
128 x 128(QII)
216 x 216
216 x 108(HII)
108 x 216(VII)
108 x 108(QII)
112 x 112
112 x 56(HII)
112 x 112
112 x 56(HII)
Power Comsumption Max/Average 750W / 250W
400W / 140W(HII)
400W / 140W(VII)
200W / 70W(QII)
750W / 250W
400W / 140W(HII)
400W / 140W(VII)
200W / 70W(QII)
520W/190W
310W/110W(HII)
520W/190W
310W/110W(HII)
Panel Weight 27KG(1000mm*1000mm),
16KG(500mm*1000mm)
27KG(1000mm*1000mm),
16KG(500mm*1000mm)
27KG(1000mm*1000mm),
16KG(500mm*1000mm)
27KG(1000mm*1000mm),
16KG(500mm*1000mm)
Panel Weight(With Windbrace) 35kg
21kg(HII)
19kg(VII)
10kg(QII)
35kg
21kg(HII)
19kg(VII)
10kg(QII)
35kg
21kg(HII)
19kg(VII)
10kg(QII)
35kg
21kg(HII)
19kg(VII)
10kg(QII)
TransparenCy Solid Solid Solid Solid
Serviceability Front / Rear Front / Rear Front / Rear Front / Rear
Curing (Concave & Convex) Concave 15° ~ Convex 10° Concave 15° ~ Convex 10° Concave 15° ~ Convex 10° Concave 15° ~ Convex 10°
Max. Hanging (panels) 10 10 10 10
Max. Stacking (panels) 10 10 10 10
LED Configuration Black SMD Black SMD Black SMD Black SMD
Viewing Horizontal 160° 160° 160° 160°
Viewing Vertical 140° 140° 140° 140°
Refresh Rate 7,680Hz 7,680Hz 7,680Hz 7,680Hz
Gray Scale 16bit 16bit 16bit 16bit
Frame Material Magesium Alloy & Aluminium Alloy Magesium Alloy & Aluminium Alloy Magesium Alloy & Aluminium Alloy Magesium Alloy & Aluminium Alloy
Processing Platform Brompton / NovaStar 5G Brompton / NovaStar 5G Brompton / NovaStar 5G Brompton / NovaStar 5G
Operation Temp/Humidity 20°~50℃,10~91%RH 20°~50℃,10~91%RH 20°~50℃,10~91%RH 20°~50℃,10~91%RH
Storage Temp /Humidity 40°~60℃,10~91%RH 40°~60℃,10~91%RH 40°~60℃,10~91%RH 40°~60℃,10~91%RH
IP Rating IP65 IP65 IP65 IP65
Certifications CE, ETL, FCC, UKCA CE, ETL, FCC, UKCA CE, ETL, FCC, UKCA CE, ETL, FCC, UKCA
