FIDO Product

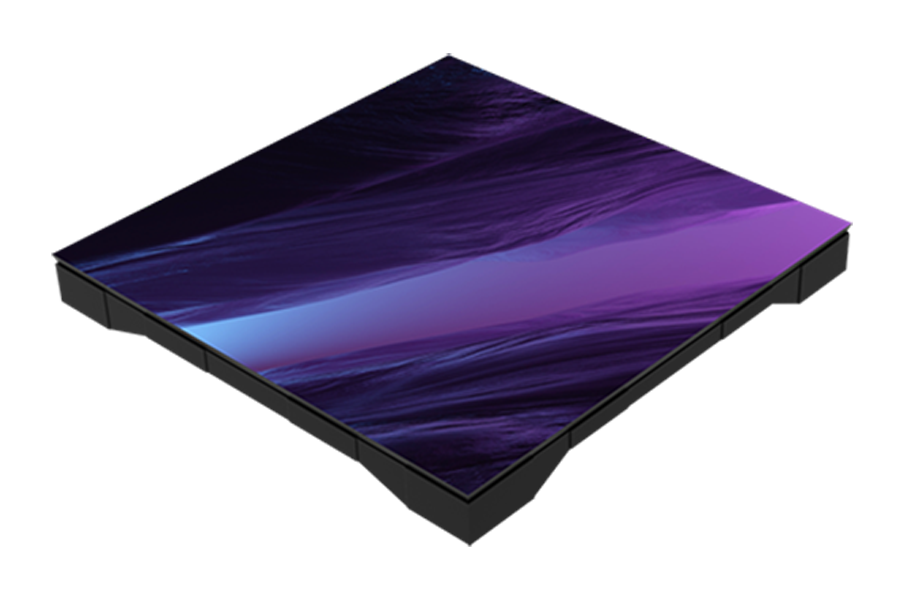

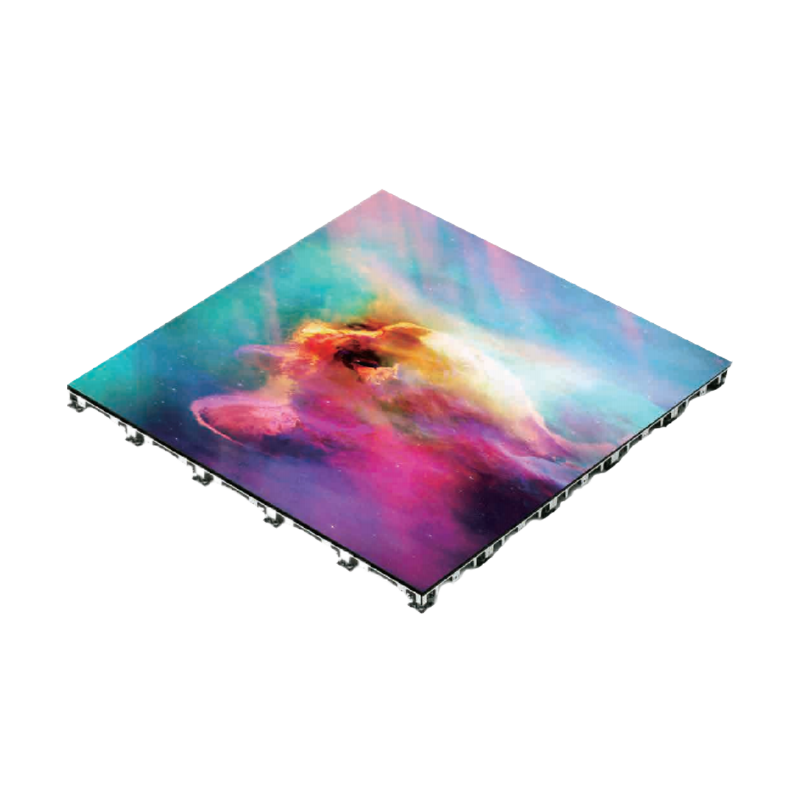

FIDO Series: Next-generation For Floor Application

The FIDO Series is the next generation for LED floor applications. It's stunning from every angle and immerses your content and spectators in a unique mixed-reality zone. It's a versatile, interactive floor display for various indoor and outdoor uses.

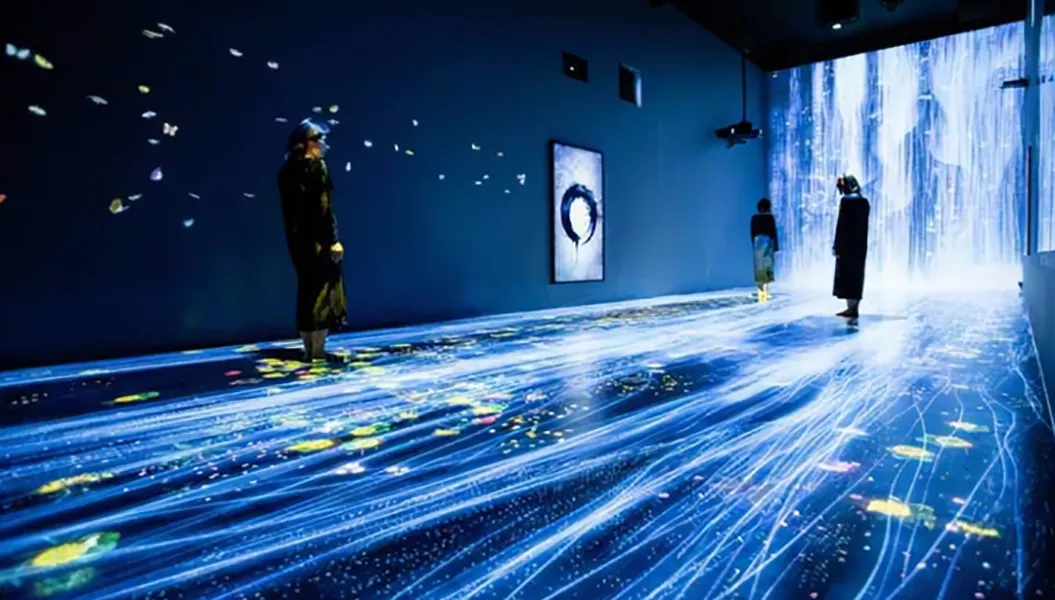

Interactive floor display:

versatile for both indoor and outdoor scenarios, suitable for multiple uses across various settings.

fido Studio Scene

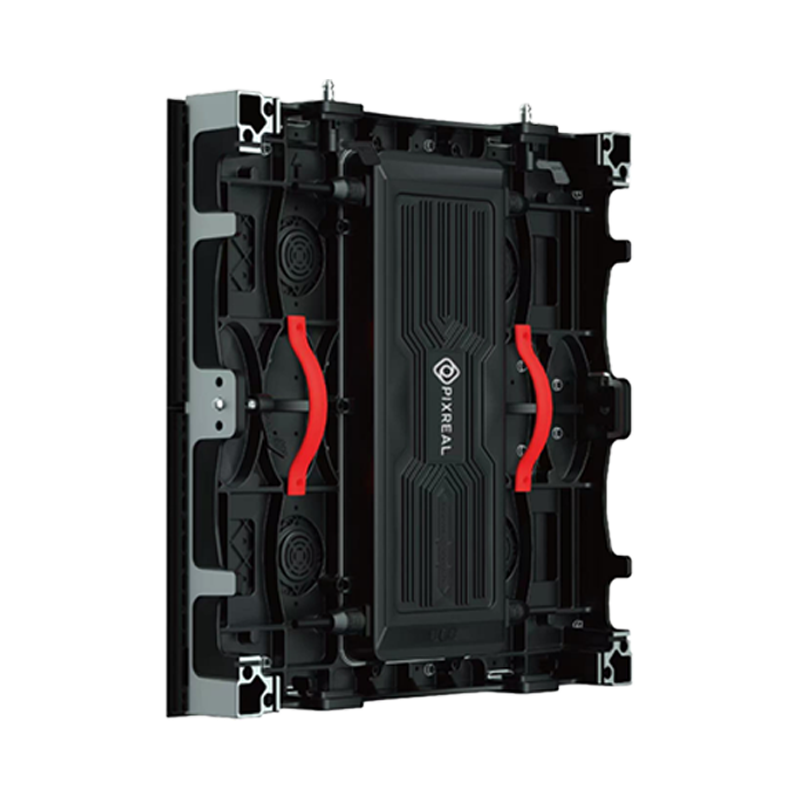

FIDO Module Structure
Hanging、Stacking、Flooring、Ceiling
Curve-able
Edge Protection
FIDO Module Structure

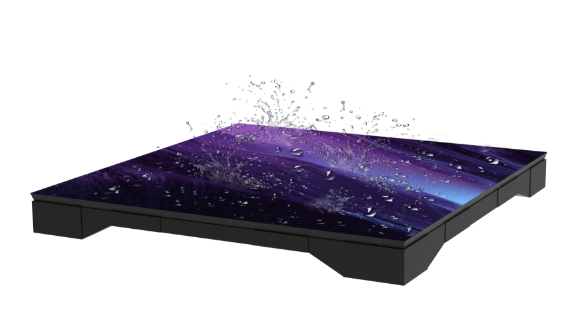

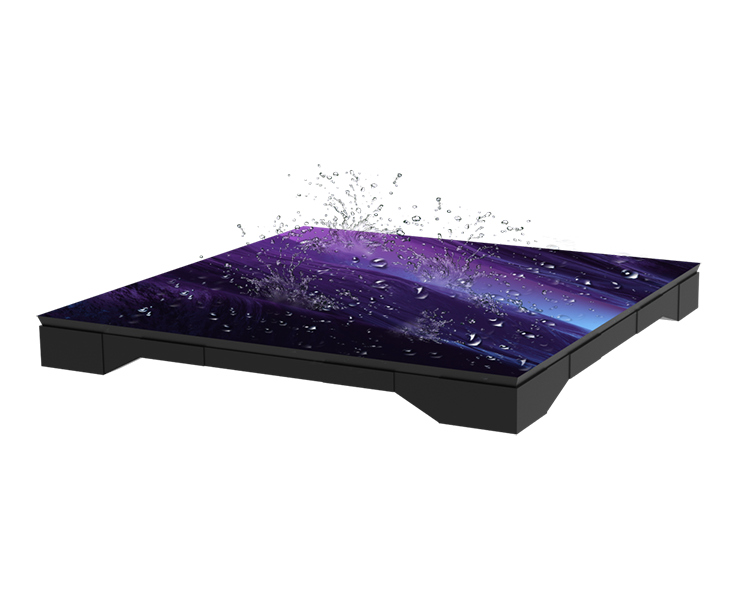

IP65

dust/water resistance, reliable indoors & outdoors.

FIDO Module Structure

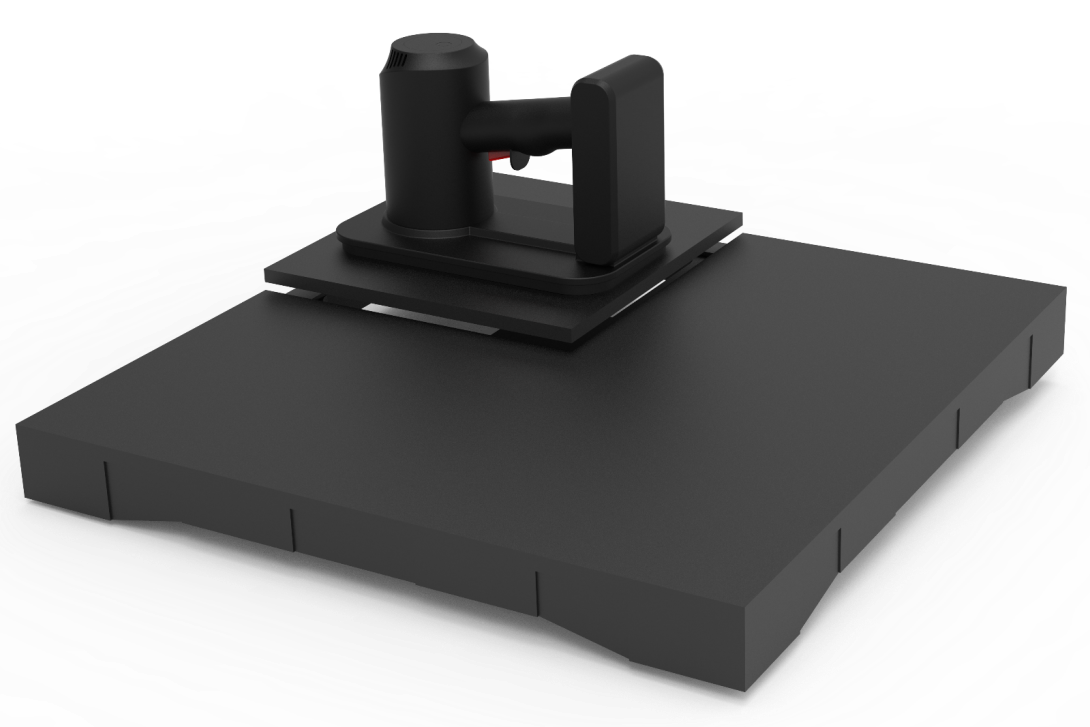

Easy Module Maintenance

FIDO Module Structure

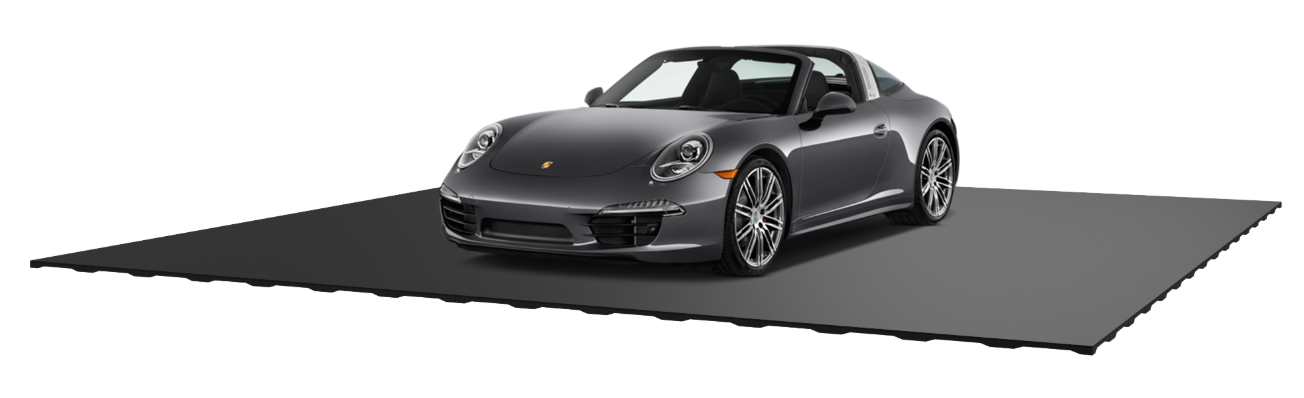

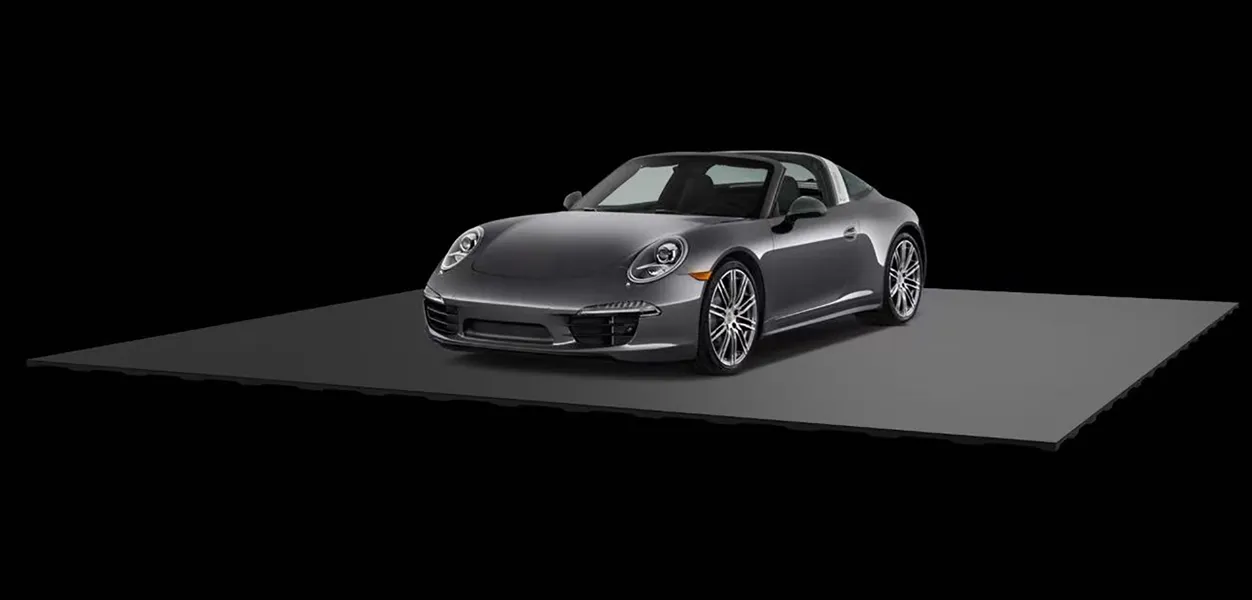

Excellent Load-Bearing Capacity

FIDO offers excellent load-bearing capacity for filming, allowing actors to dance on top of the display and withstand the pressure exerted by filming props.

Modules available in 3 pixel pitches.

FIDO

MODEL FIDO1.9 FIDO 2.6 FIDO2.9
Pixel Pitch 1.95mm 2.60mm 2.98mm
LED Configuration SMD1415 SMD1415 SMD1415
Max Brightness Calibrated 800~900nits 900~1,300nits 900~1,300nits
Contrast Ratio ≥3,500:1 ≥3,500:1 ≥3,500:1
Panel Dimension (H × V) 500mm x 500mm 500mm x 500mm 500mm x 500mm
Panel Resolution (H x V) 256 x 256 192 x 192 168 x 168
Power Consumption Max / Average ≤800W/㎡ / ≤300W/㎡ ≤800W/㎡ / ≤300W/㎡ ≤800W/㎡ / ≤300W/㎡
Viewing Angle (H × V) 160° / 160° 160° / 160° 160° / 160°
Refresh Rate 7,680Hz 3,840Hz 3,840Hz
Gray Scale 14bit 14bit 14bit
Transparency Solid Solid Solid
Serviceability Rear Rear Rear
Panel Weight 11kg 11kg 11kg
Frame Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Processing Platform Novastar / Colorlight Novastar / Colorlight Novastar / Colorlight
Operating Environment -20℃~+40℃ / 10%~90% RH -20℃~+40℃ / 10%~90% RH -20℃~+40℃ / 10%~90% RH
