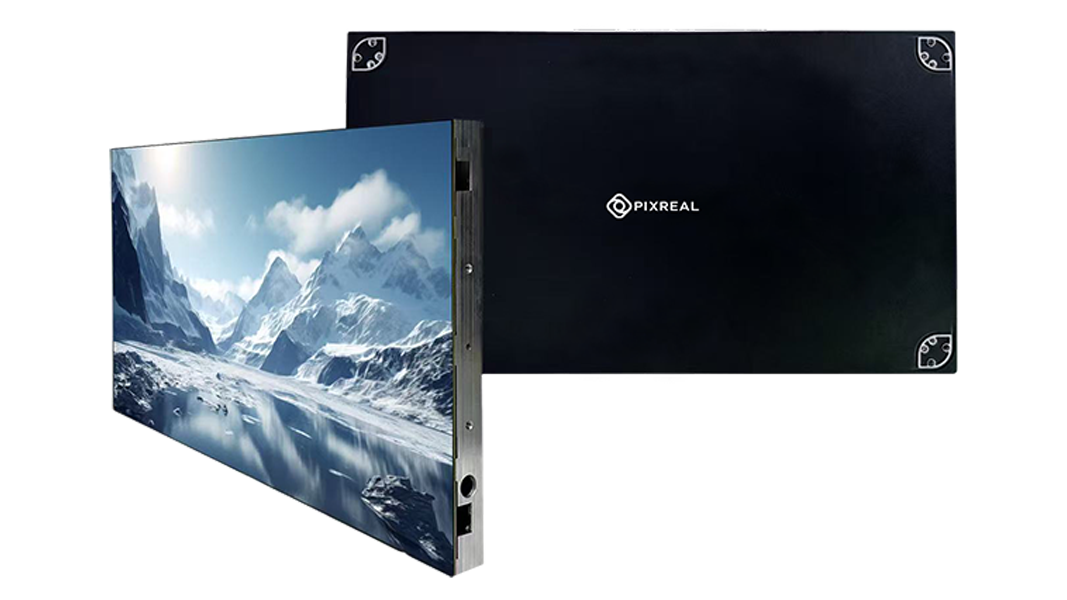

RAVEN SERIES
RAVEN series was designed and manufactured with precision mechanics that enable fine pixel applications. 16-bit color processing depth throughout facilitates a canvas for creative content
KEY FEATURES
16:9 format
16bit Improved color
processing Depth
Multiple Panels Size
for Flexible Configuration
3840Hz Refresh Rate

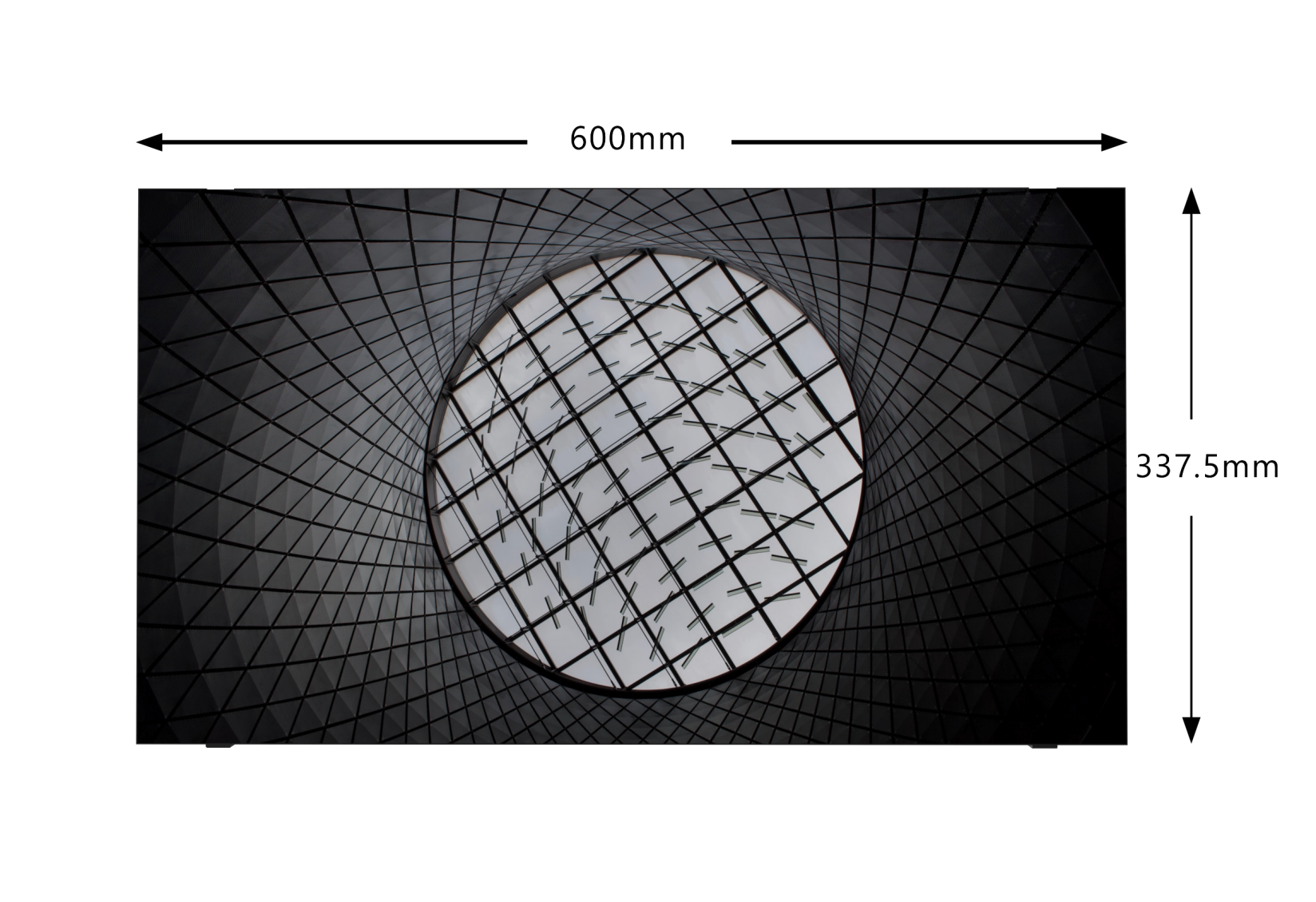

16:9 FORMAT DESIGN
Flexible for any size of4K, 8K, 16K or larger
Super black surface
Less reflection

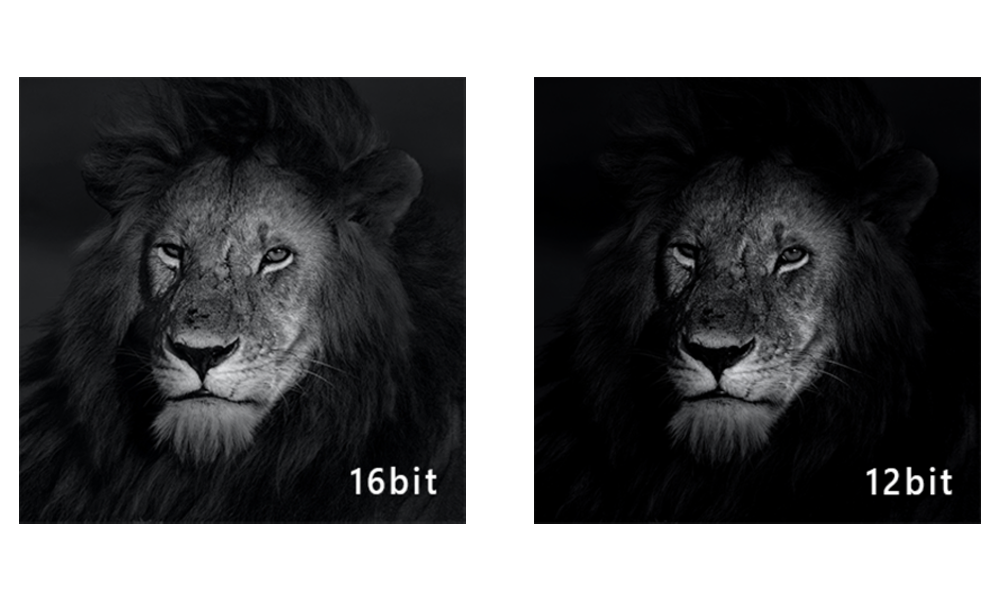

16-BIT GRAYSCALE PROCESSING TECHNOLOGY
Enhanced levels and details within the image
Solve the matching degree of electro-optical curve in HDR
Improve the accuracy of point-by-point correction with the smaller correction granularity
Improve the ability of grayscale most crucially at low brightness
| MODEL | RAVEN0.7 | RAVEN0.9 | RAVEN1.2 | RAVEN1.5 | RAVEN1.8 |
|---|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm | 1.87mm |
| LED Configuration | COB,Flip Chip | COB,Flip Chip | COB,Flip Chip | COB,Flip Chip | COB,Flip Chip |
| Max Brightness Calibrated | 600 | 600 | 600 | 600 | 600 |
| Contrast Ratio | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 |
| Panel Dimension (H × V) | 600mm x 337.5mm | 600mm x 337.5mm | 600mm x 337.5mm | 600mm x 337.5mm | 600mm x 337.5mm |
| Panel Resolution (H x V) | 768 x 432 | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 |
| Power Consumption Max / Average | ≤200W/㎡ / ≤65W/㎡ | ≤280W/㎡ / ≤95W/㎡ | ≤270W/㎡ / ≤95W/㎡ | ≤210W/㎡ / ≤70W/㎡ | ≤210W/㎡ / ≤70W/㎡ |
| Viewing Angle (H × V) | 140° / 140° | 140° / 140° | 140° / 140° | 140° / 140° | 140° / 140° |
| Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz |
| Gray Scale | 16bit | 13bit | 13bit | 13bit | 13bit |
| Transparency | Solid | Solid | Solid | Solid | Solid |
| Serviceability | Front | Front | Front | Front | Front |
| Panel Weight | 6kg | 6kg | 6kg | 6kg | 6kg |
| Frame Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Processing Platform | Novastar / Colorlight | Novastar / Colorlight | Novastar / Colorlight | Novastar / Colorlight | Novastar / Colorlight |
| Operating Environment | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH |
