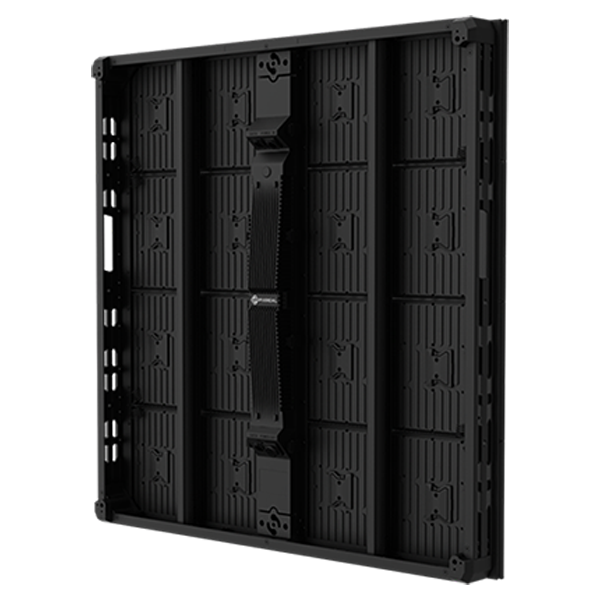

The ENZO CL features a specialized mechanical structure designed specifically for ceiling installations. Every detail, from how the parts align to how the weight is distributed, works to get rid of gaps. It's smart engineering that provides the backbone for a perfect ceiling display.
ENZO CL’s mechanical structure is purpose-built—made just for ceiling screens, making seamless setups easy. Every little detail, from how parts line up to how weight spreads out, gets rid of gaps. It’s the kind of smart engineering that turns a basic structure into the backbone of a perfect ceiling display.

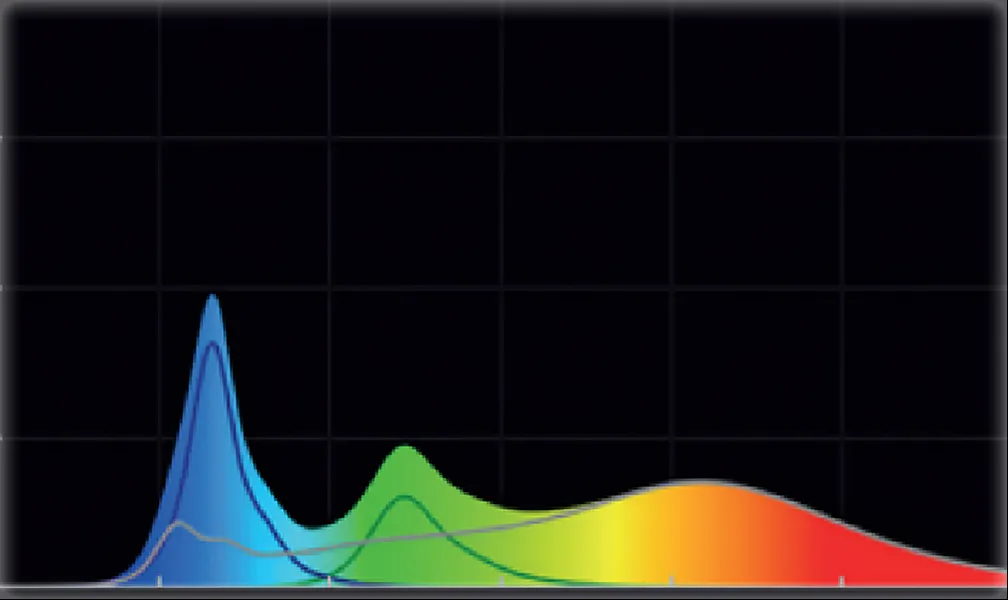

Adding a white emitter gives you a broader color spectrum with full wavelength output, which is designed for ceiling setups.
With deep black LEDs and anti-reflection surface technology, you get superior high-contrast performance.
| Pixel Pitch | 3.9mm |
| Scan Ratio | 1/16 |
| LED Configuration | SMD1921 |
| Max Brightness Calibrated | 4,500nits |
| Contrast Ratio | ≥5,000:1 |
| Panel Dimension (H×V) | 1,000mm x 1,000mm 1,000mm x 500mm(H Model) 500mm x 1,000mm(V Model) 500mm x 500mm(Q Model) |
| Panel Resolution (H×V) | 256 x 256 256 x 128((H Model) 128 x 256(V Model) 128 x 128(Q Model) |
| Power Consumption Max/Average | 600W / 200W 360W / 120W(H Model) 360W / 120W(V Model) 200W / 70W(Q Model) |
| Viewing Angle(H/V) | 160° / 140° |
| Refresh Rate | 7680Hz |
| Gray Scale | 15bit |
| Max Frame Rate | 120Hz |
| Serviceability | Front/Rear |
| Transparency | Solid |
| Curving (Concave&Convex) | Concave 10° ~ Convex 7.5° |
| Panel Weight | 25KG |
| Frame Material | Magnesium Alloy & Aluminium Alloy |
| Processing Platform | Brompton / NovaStar 5G |
| Operating Environment | -20°C~+40°C / 10%-90% RH |
| Certifications | CE, ETL, FCC, RoHS, WEEE |
