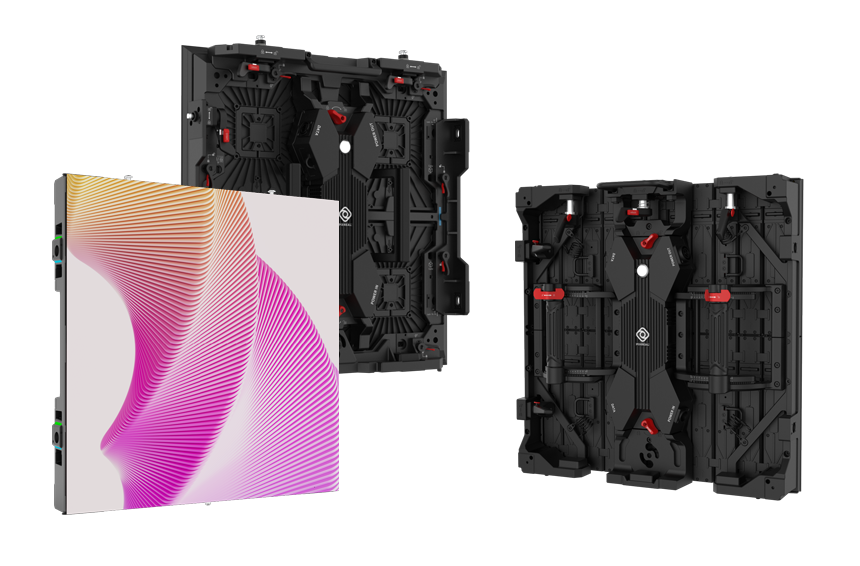

HIRO Series
LED Solutions for VP Studios, Film & Live events
Indoor | Fine pitch LED | Flat, Curved & Cube

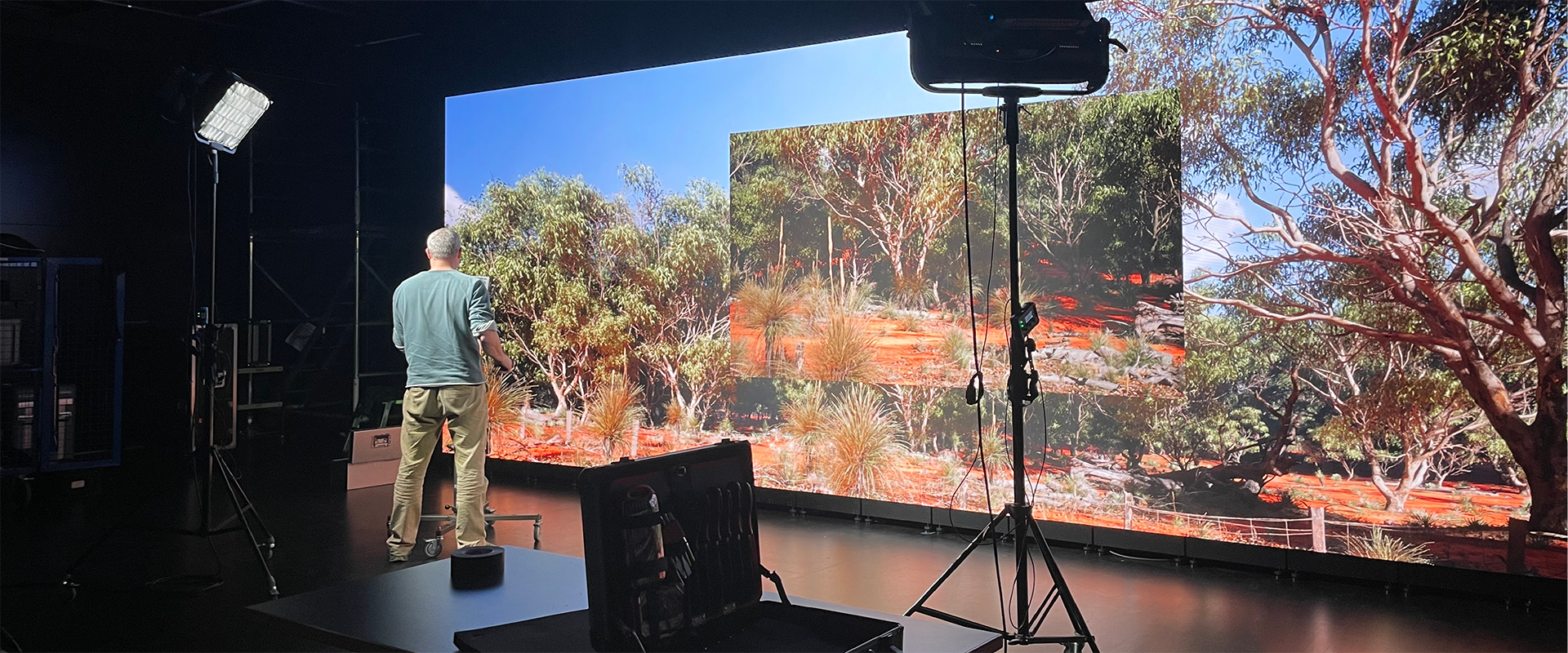

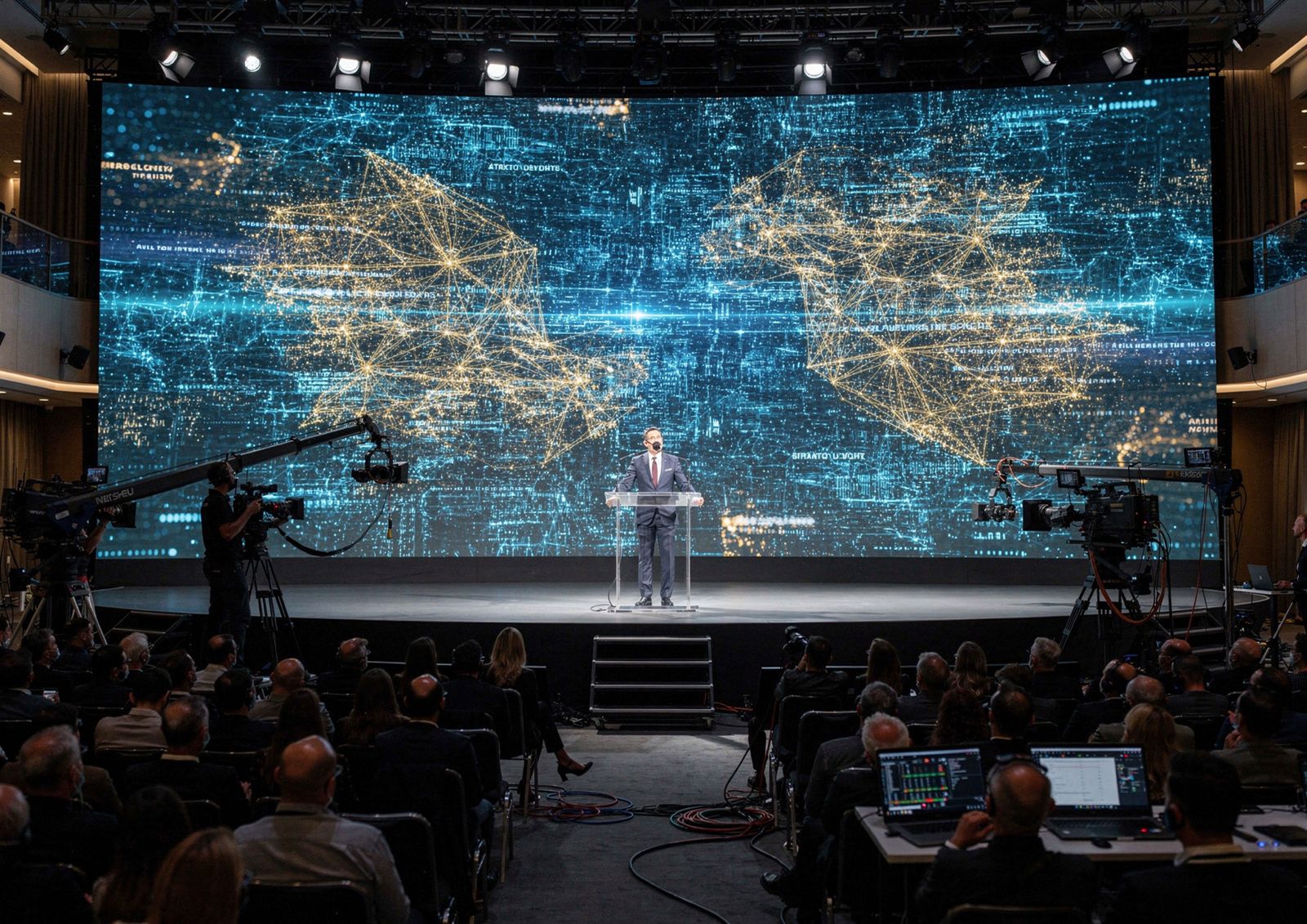

HIRO is built for productions where image performance is non-negotiable. From virtual production stages to broadcast studios and live events, it delivers the cinematic precision that demanding workflows require.
The Pixel HIRO is engineered around that reality. Combining up to 15,360 Hz refresh rate, 16-bit grayscale, and 99.9% DCI-P3 color coverage with a modular cabinet platform built for demanding production environments.
Whether the image calls for a precise flat wall, an immersive curved volume, or a three-dimensional configuration, HIRO adapts to the set. HIRO delivers the foundation for flat LED walls. HIRO-C adds adjustable curvature up to 45° concave or convex, allowing flat
and curved sections to work together within one installation. HIRO-CUBE takes the same platform into three-dimensional configurations, turning LED from a surface into a space.
Different shapes. Different demands. One visual foundation.
#EngineeredForLongevity

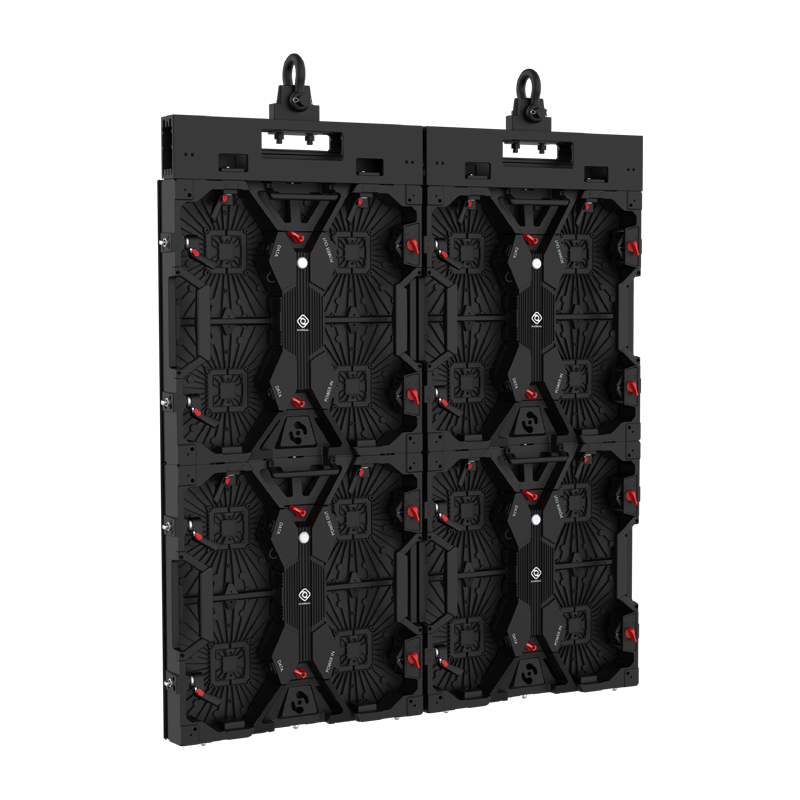

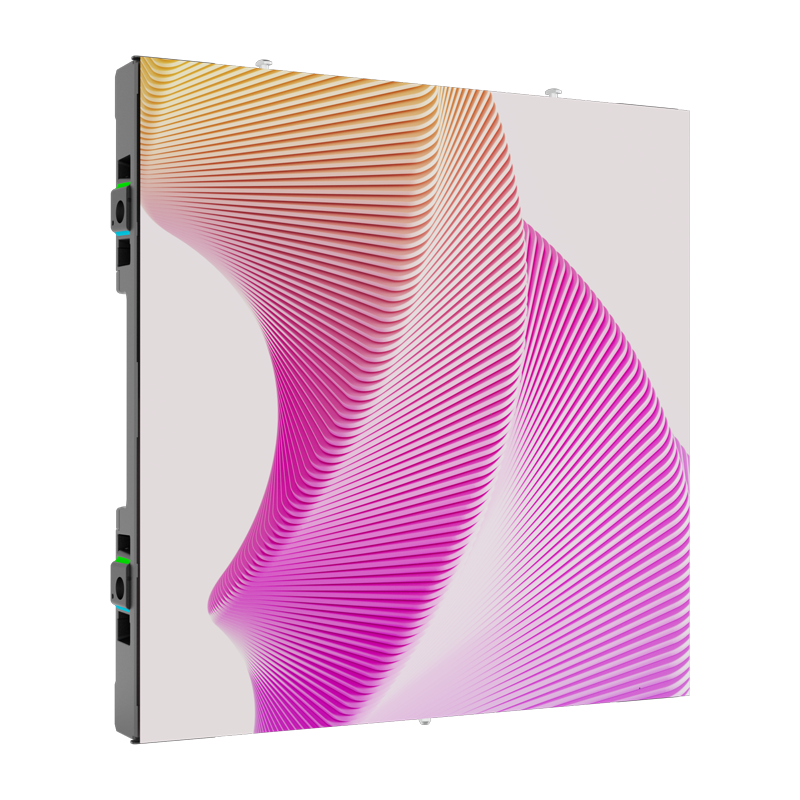

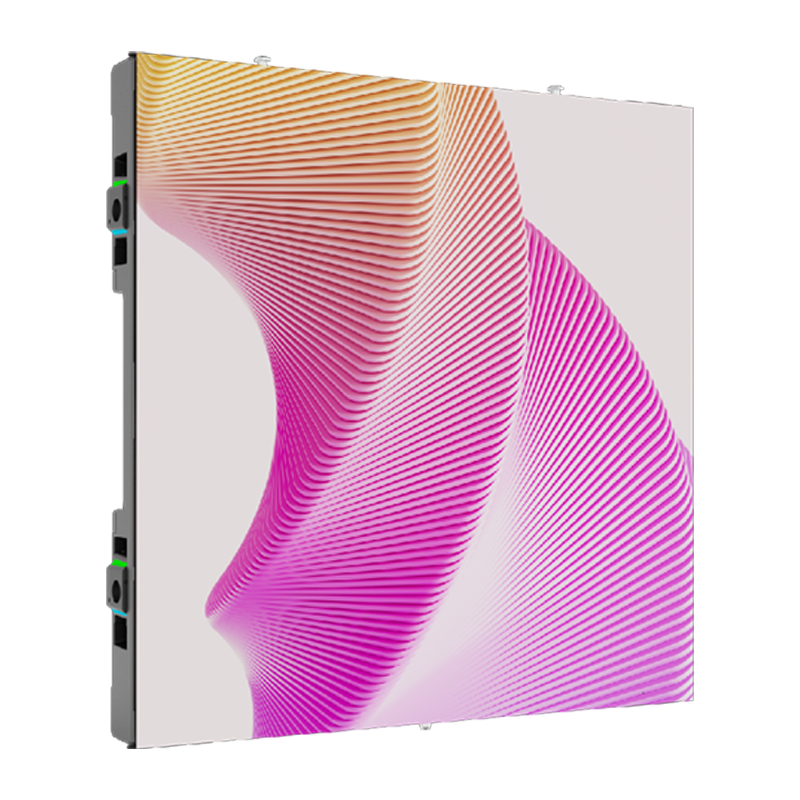

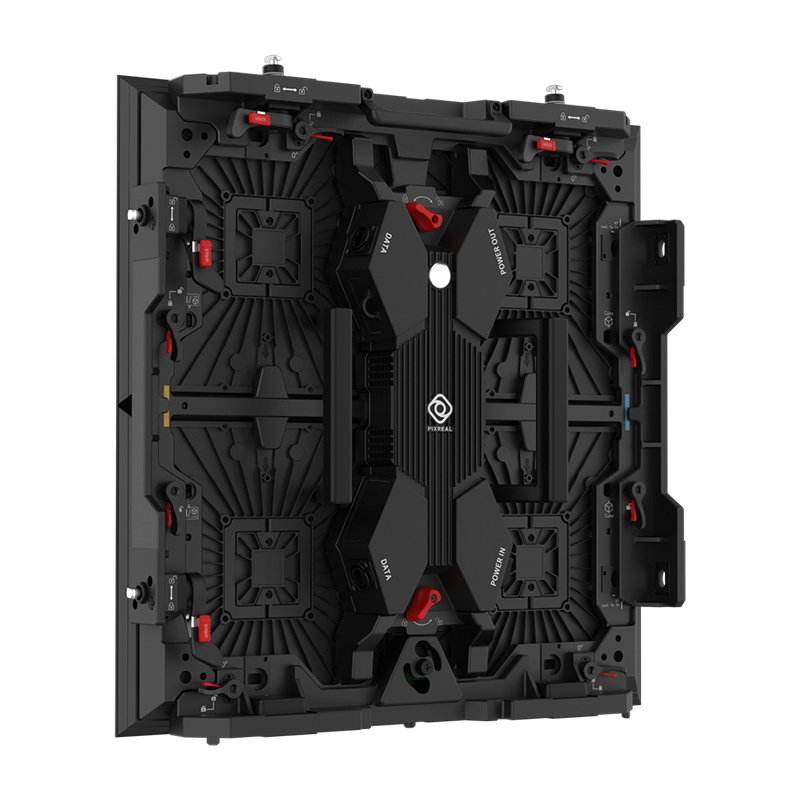

A flat LED wall leaves nowhere for inconsistency to hide.
Every cabinet, seam and pixel has to align as one continuous surface.

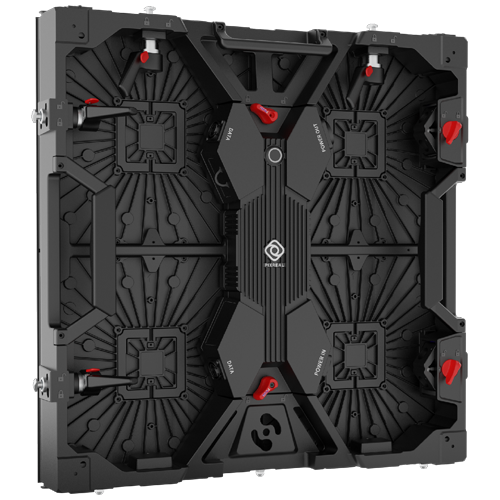

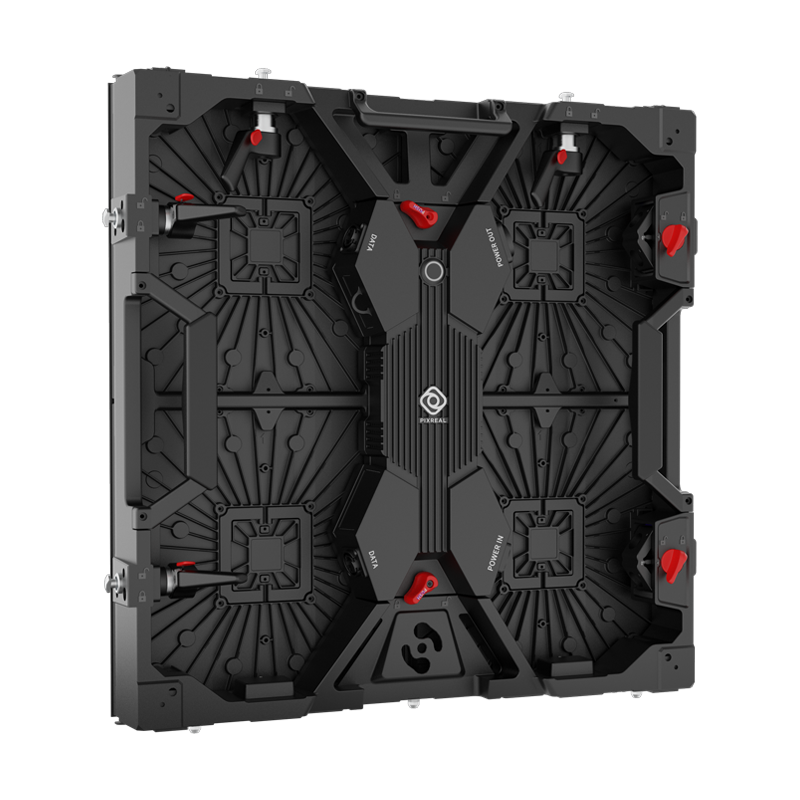

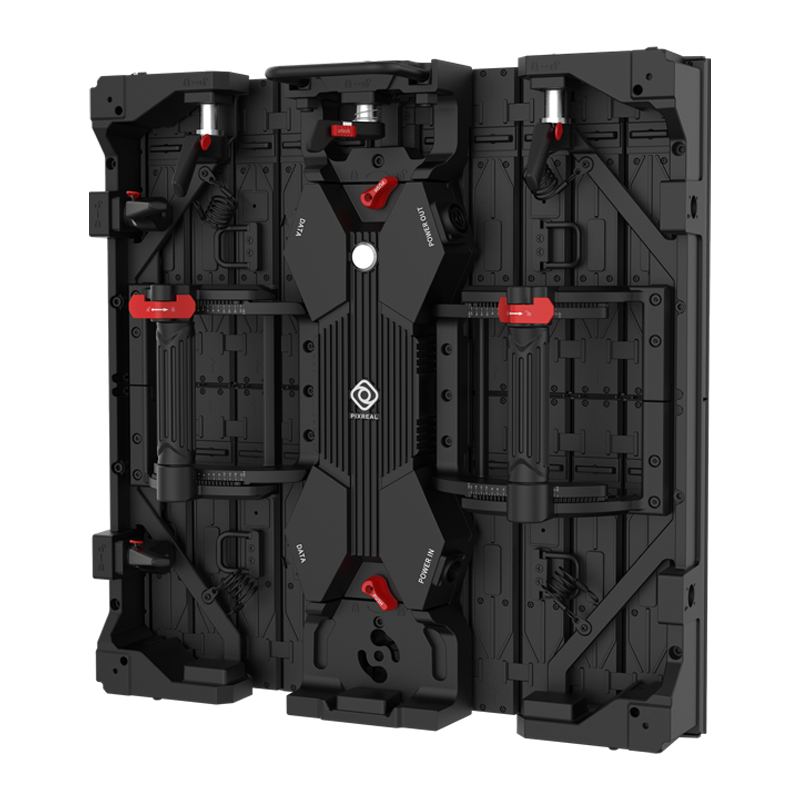

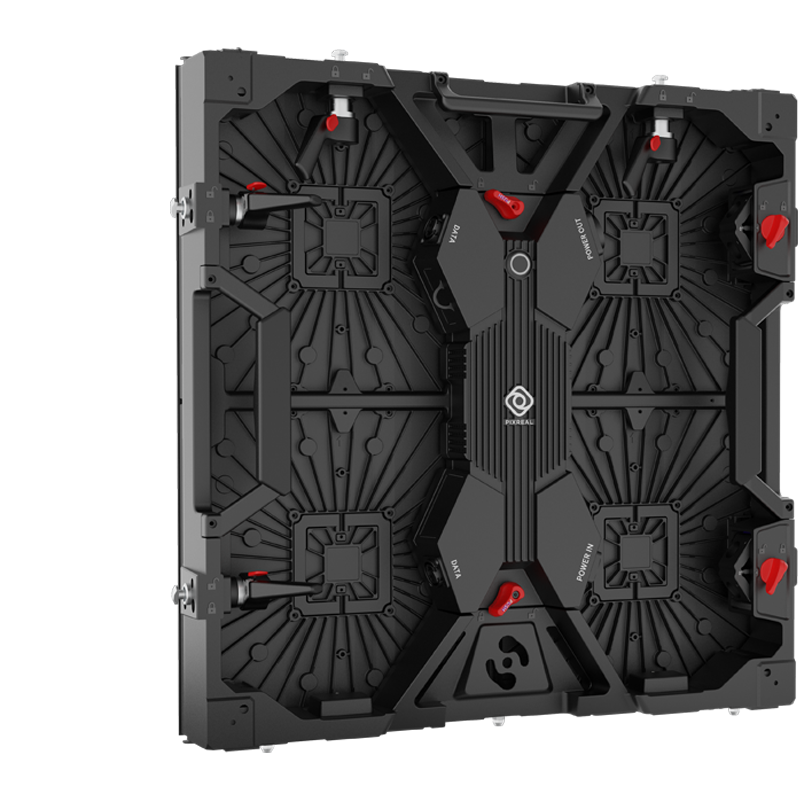

HIRO is engineered to create that foundation. Its precision cabinet architecture supports fast alignment, consistent image performance and reliable front or rear servicing. From compact broadcast studios to large virtual production stages, the result is a surface that stays visually uniform across the entire frame.
HIRO Flat offers three performance levels – PRO / STANDARD / RENTAL
REQUEST DEMO| VP Challenge | Solution with HIRO |
|---|---|
| Frame Ghosting |
|
| Visible Scan Lines |
|
| Multi-Camera Output |
|
| Color Accuracy |
|

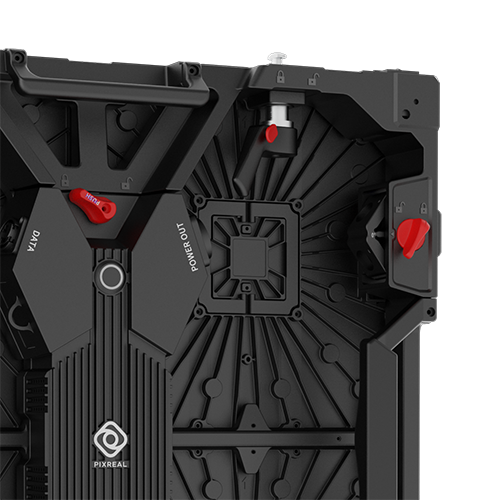

HIRO offers two toolless locking systems, each built for a different way of working. Rotation Lock has five preset angles built directly into the mechanism itself: 0°, -2.5°, 1.5°, 2.5°, and 5°. No separate parts to source or misplace between shows, making it the natural choice for touring rigs, rental fleets, and fast-turnaround live events.

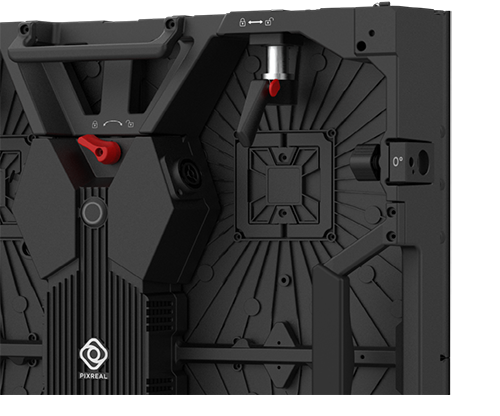

Angle Block takes a different approach, built for fixed and semi-fixed virtual production stages. Each block is manufactured for a specific angle and fully customized to the exact geometry a stage requires, whether that’s a curved volume wall or a bespoke configuration that falls outside any standard preset.
Rotation Lock
Angle Block

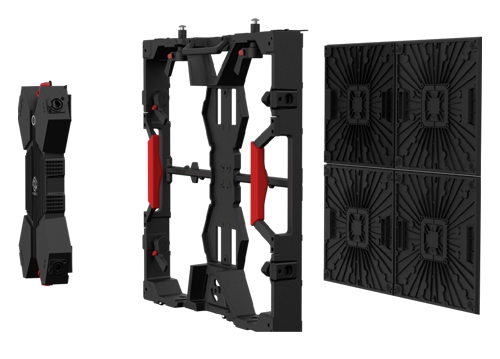

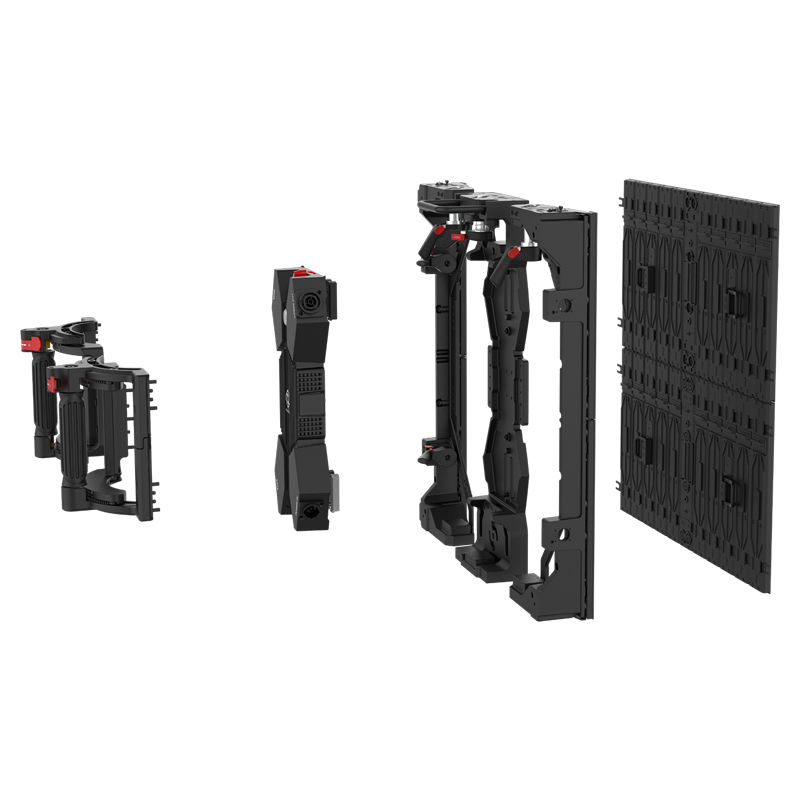

Module design

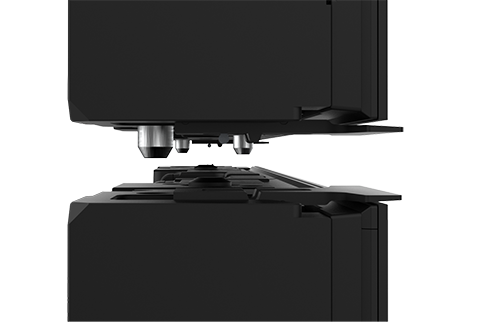

Automatic edge protection
Corners take the worst hits. Load-in, breakdown, the oment a cabinet meets concrete. That is where outer LEDs go.
HIRO shields the edges and corners when panels are moved, stacked, or foored. The mechanism absorbs the knock before it reaches the LEDs.
When service is needed, panels, modules, and power boxes come out on site. No dismantling the rig. No discarding a panel over one part. Less downtime. The show keeps moving.

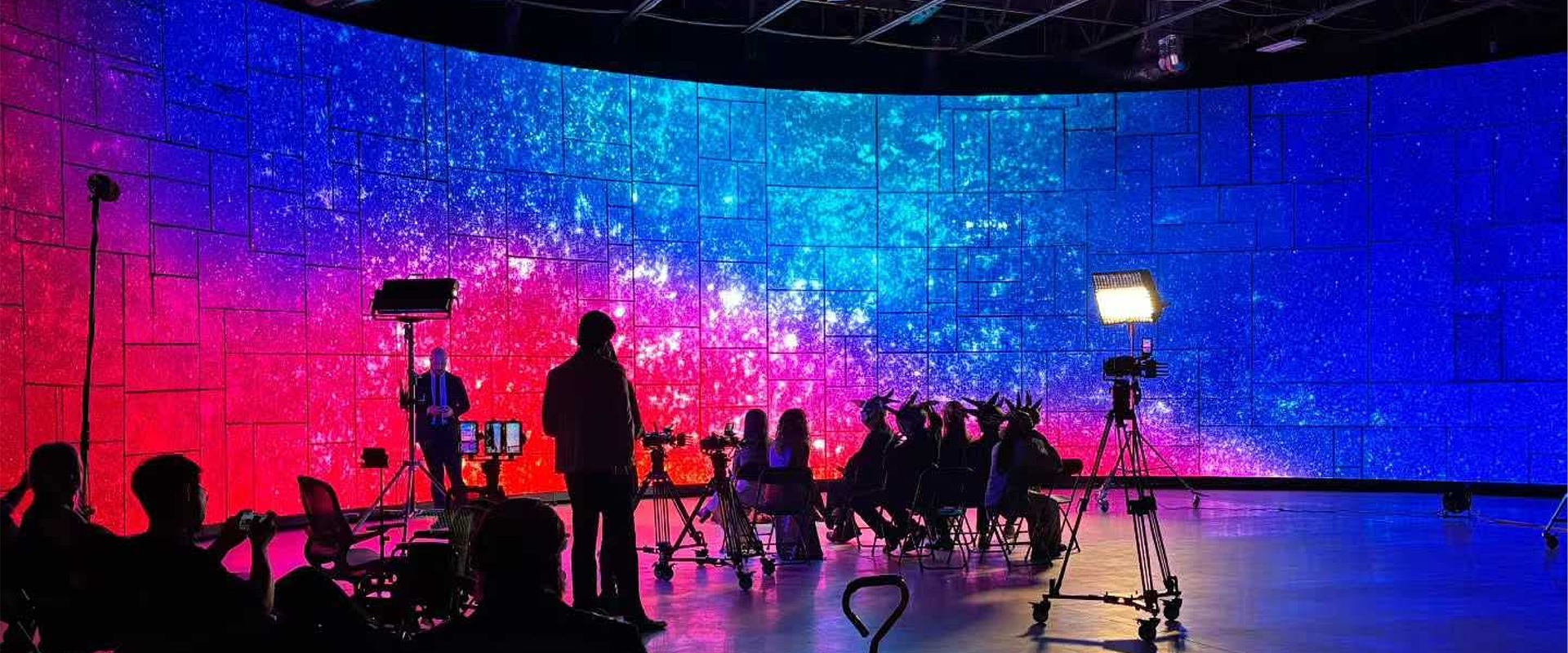

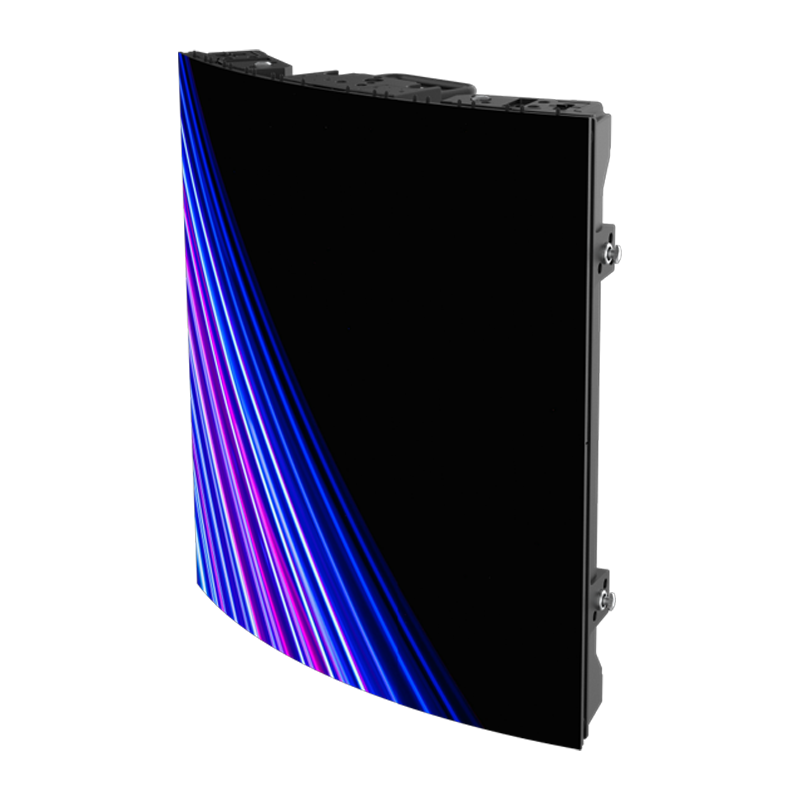

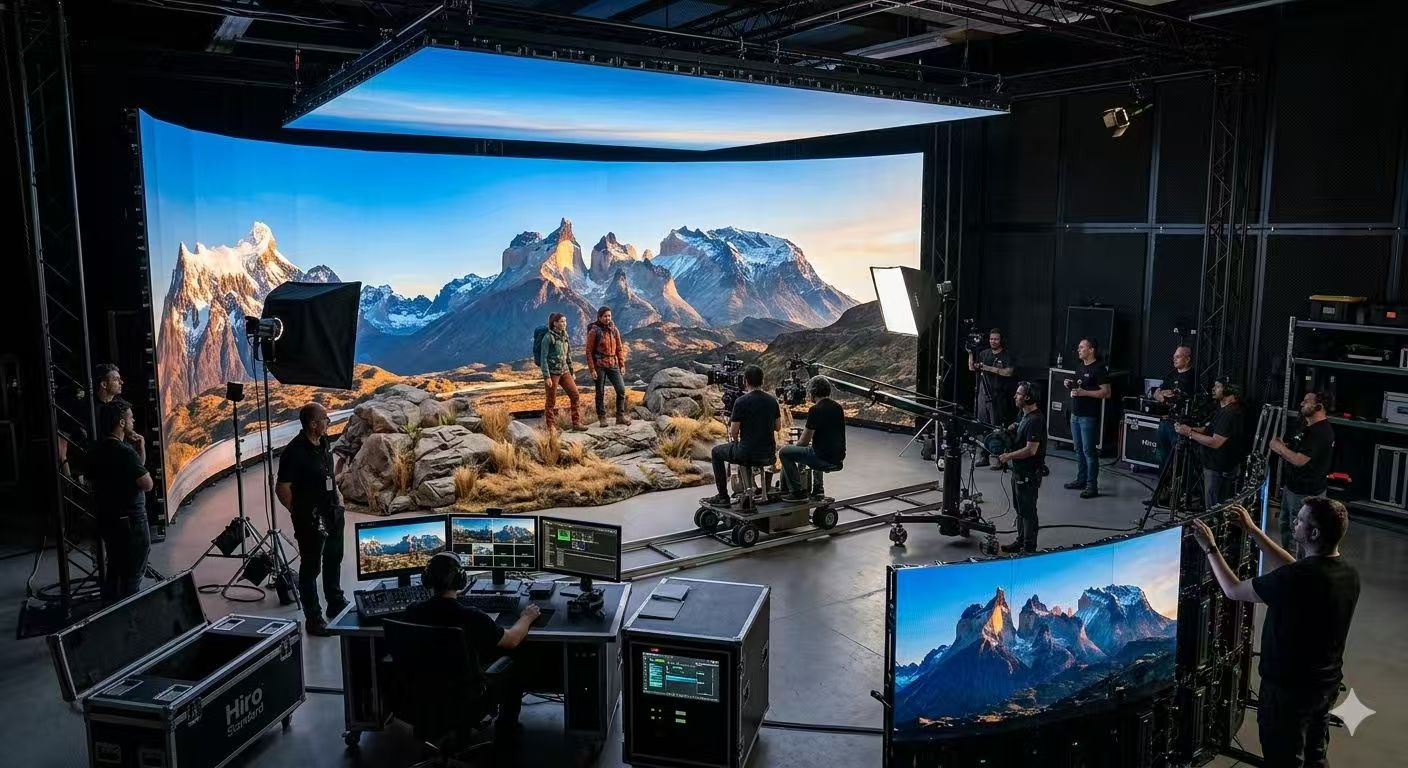

A curved LED wall has to do more than follow a radius. Every cabinet, seam and pixel has to work together across changing angles while the image remains visually consistent.
HIRO-C is engineered to make that possible. Its adjustable cabinet architecture moves from flat to concave or convex configurations while maintaining precise alignment and consistent image performance. From broadcast sets and indoor events to immersive virtual production volumes, HIRO-C gives productions the freedom to shape the screen around the environment.
HIRO Curve offers three perfomance levels - PRO / STANDARD / RENTAL
REQUEST DEMO| Production Challenge | Solution with HIRO-C |
|---|---|
| Visible Segmentation |
|
| Limited Design Freedom |
|
| Complex Curve Adjustment |
|
| Combining Shapes |
|
HIRO-C curves from the center of the cabinet. Each half rotates up to 22.5 degrees. For 45 degrees across the panel, concave or convex.
Putting the pivot inside the cabinet means the curve is continuous rather than segmented, The surface follows the design instead of stepping around it, and tighter radii become possible without adding hardware or reducing cabinet count.
That approach carries into the rest of the specification. A viewing angle of up to 17o degrees is what happens when chip architecture, wiring design, and packaging are all optimized toward consistent image quality, no matter where the viewer or camera is standing, Brightness runs from 1,000 up to more than 1.800 nits, so the panel stays clear and vivid whether it is viewed straight on or from the extreme edge of that 17o-degree range.

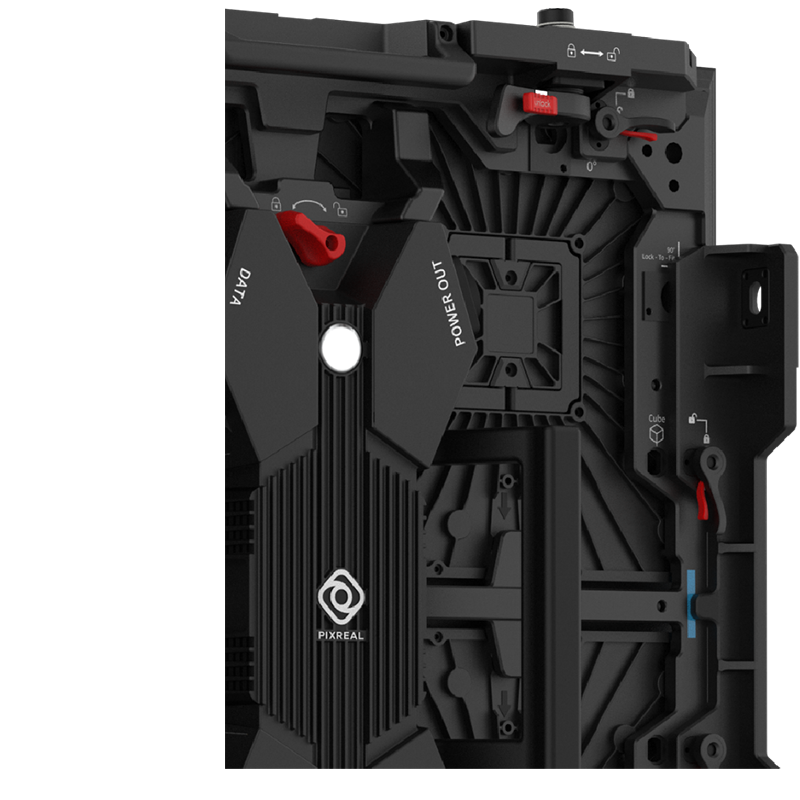

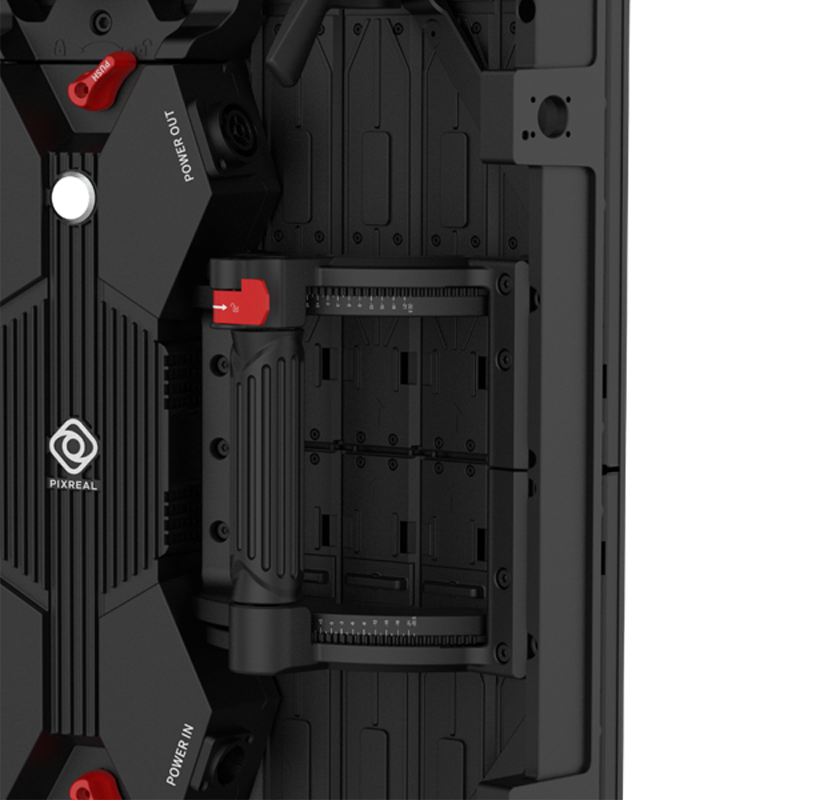

Transport, handling, and angle adjustment in a single component. The rotation dial is integrated into the handle body. A red locking lever holds the setting. Flip it to adjust, turn to the required angle flip it up to secure.

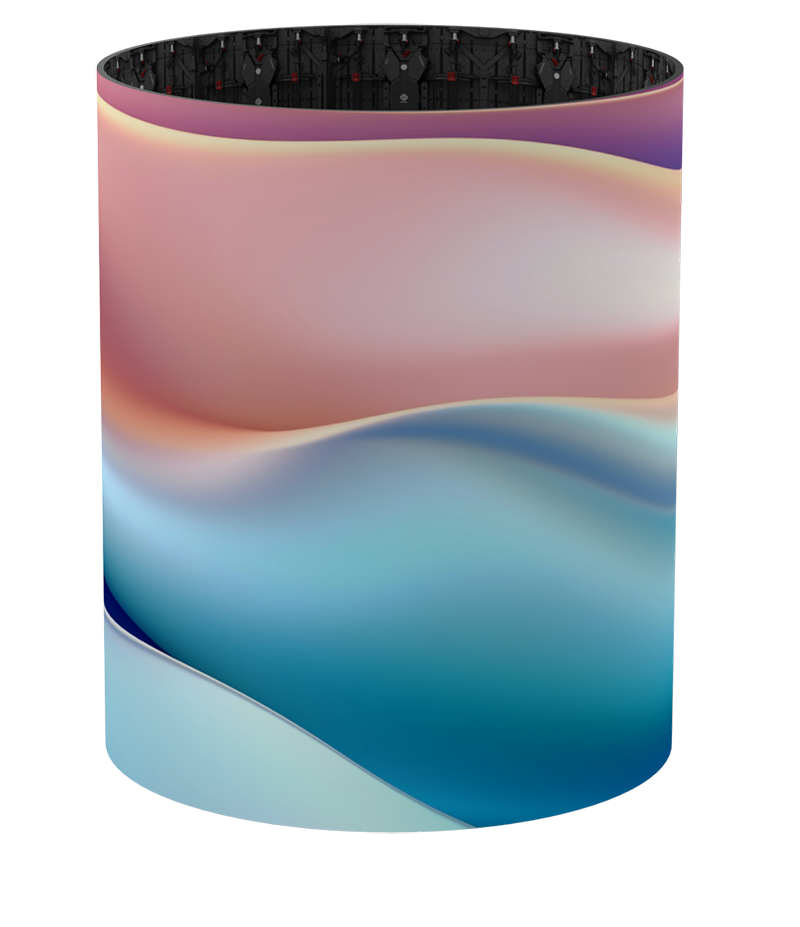

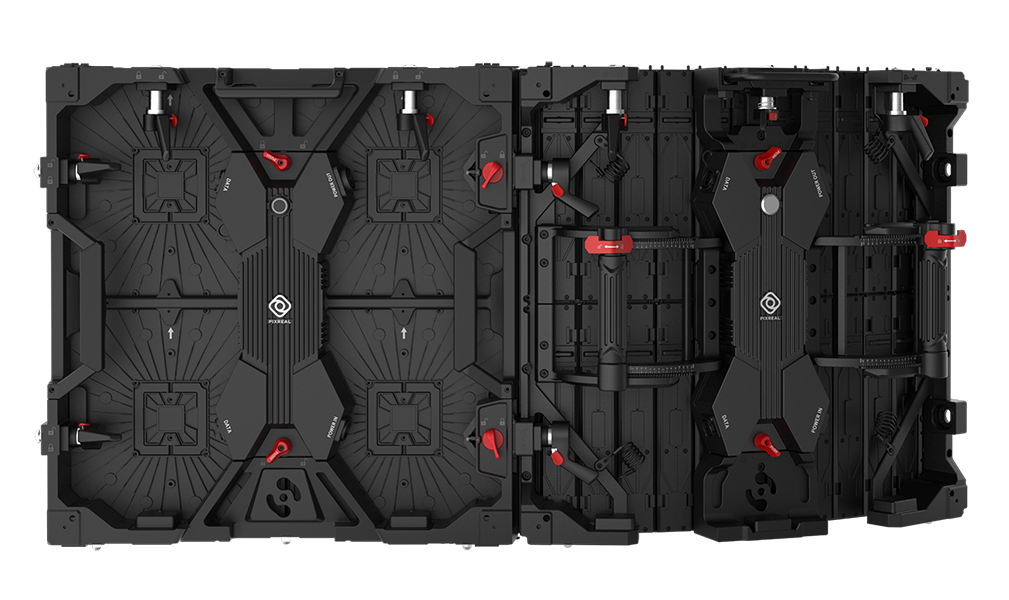

HIRO-C runs curved or straight, and it connects directly standard HIRO-Cabinets. Flat and curved sections lock into one wall, sharing the same frame, the same rigging and the same processing.
Corners take the worst hits. Load-in, breakdown, the moment a cabinet meets concrete. That is where outer LEDs go.
HIRO shields the edges and corners when panels are moved, stacked, or floored. The mechanism absorbs the knock before it reaches the LEDs.
When service is needed, panels, modules, and power boxes come out on site. No dismantling the rig. No discarding a panel over one part. Less downtime. The show keeps moving.

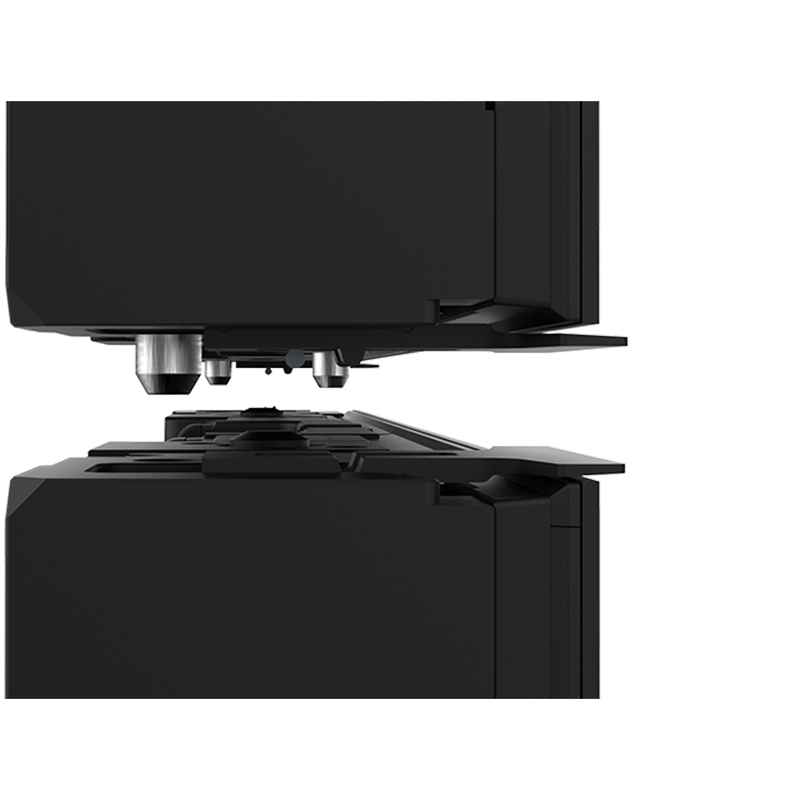

The automatic protection corner on HIRO series products uses built-in precision mechanics to buffer impacts during installation and disassembly. This shields the LEDs from collision damage, significantly extending the display's lifespan and ensuring long-term stability.
A three-dimensional LED structure brings a different challenge. Every corner, connection and pixel has to work together as the display moves beyond a single surface and into the space.
HIRO Cube is engineered to create that freedom. Its dedicated building elements support precise 90° corners, multi-sided columns and cube configurations while integrating with regular HIRO modules. From dimensional broadcast sets and virtual production environments to creative stages and indoor events, the result is an LED structure that becomes part of the design rather than simply the backdrop.
HIRO Cube offers three performance levels - PRO / STANDARD / RENTAL
REQUEST DEMO| Production Challenge | Solution with HIRO Cube |
|---|---|
| Building Seamless Corners |
|
| Limited Spatial Possibilities |
|
| Combining 2D and 3D Shapes |
|
| Different Viewing Directions |
|

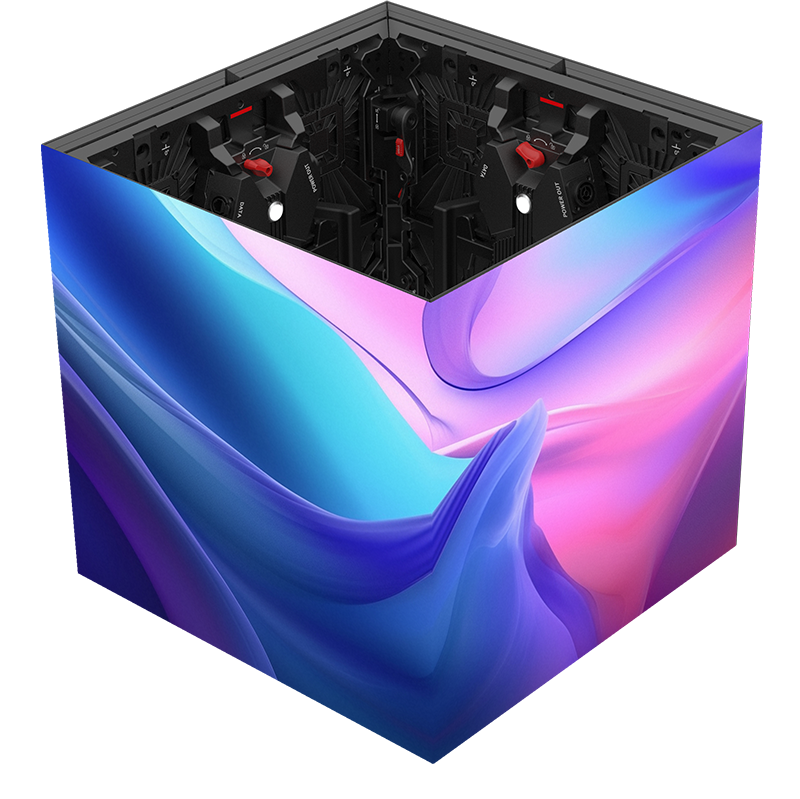

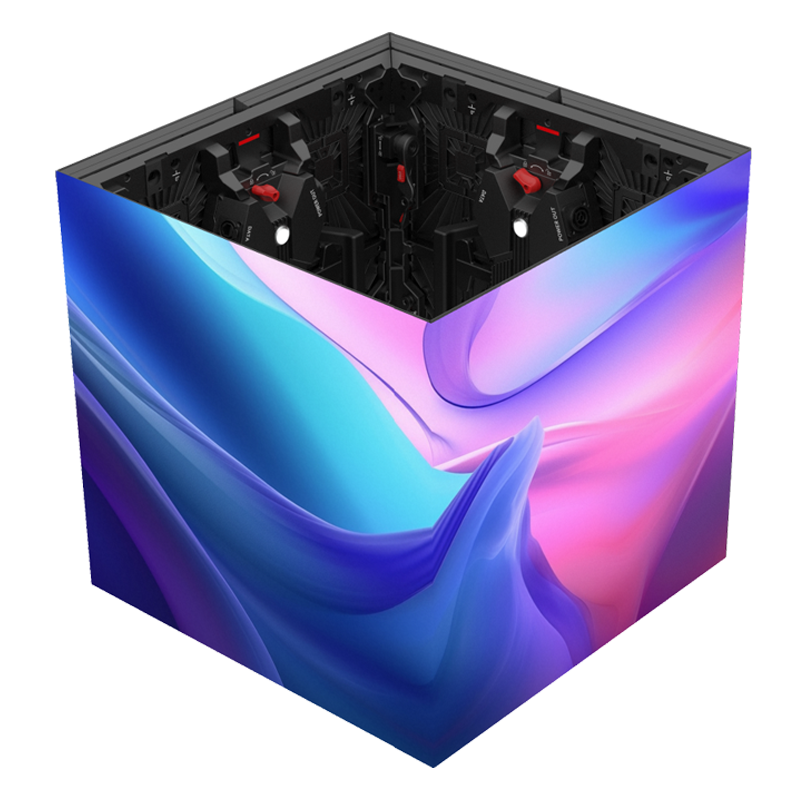

HIRO Cube uses dedicated building elements to create precise 90-degree connections. Content continues around the corner without the visible gap or bulky adapter that can interrupt a conventional LED structure.
Combine the elements to build sharp corners, four-sided columns or complete six-sided cubes. The result can stand within a broadcast set, become part of an indoor stage design or create a digital object that attracts attention from multiple directions.
Because HIRO Cube remains part of the wider HIRO ecosystem, the same image performance and processing continue across every face. Each side reads as part of one structure, whether viewed by the audience, through the camera or from across the room.

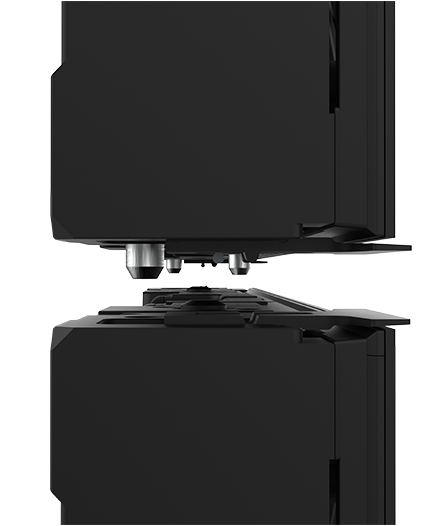

The right-angle locking system is integrated directly into the cabinet frame. It positions adjoining elements at a precise 90-degree angle and keeps the connection secure throughout the production.
No separate corner adapters. No complicated external hardware. Just a fast, repeatable connection for both stacked and flown structures.

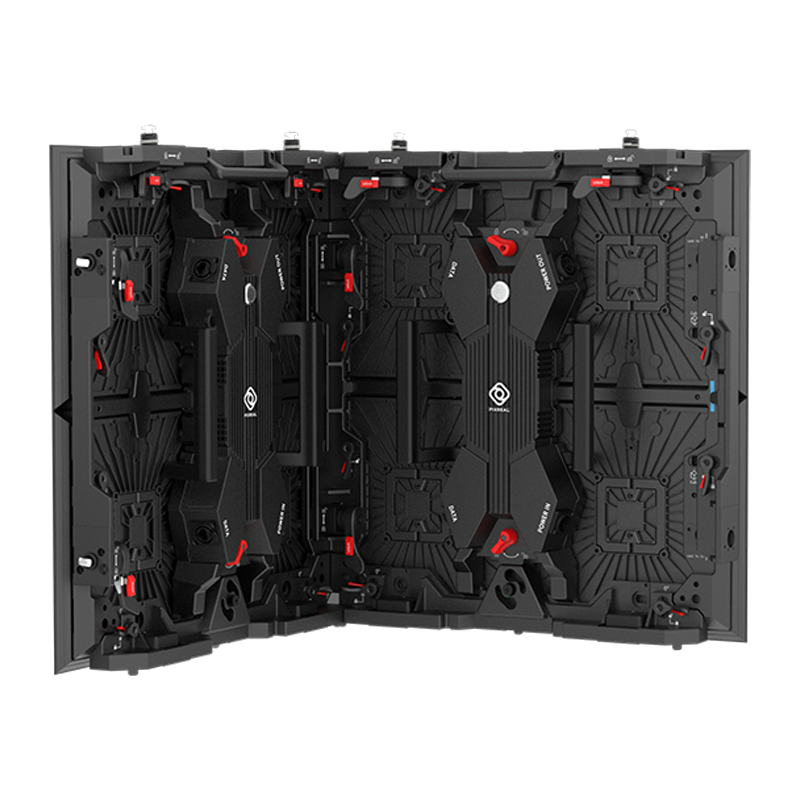

HIRO Cube elements connect directly to regular HIRO cabinets. Flat walls can transition into corners, columns and enclosed structures while sharing the same mechanical platform, rigging approach and processing.
This makes it possible to extend an existing HIRO setup with three-dimensional elements without introducing a separate cabinet system.

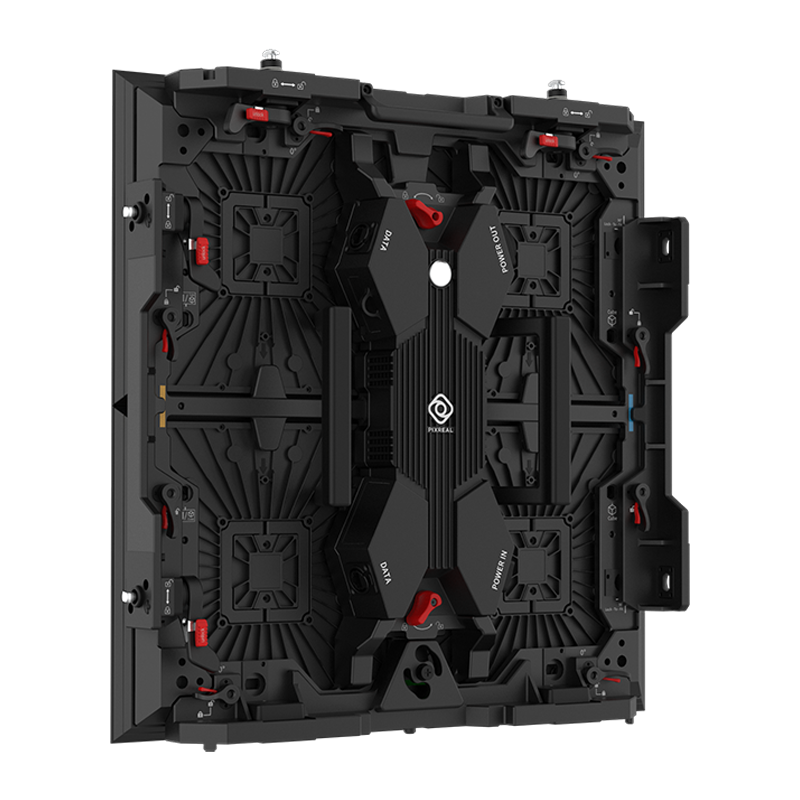

HIRO Cube turns the display into part of the physical environment. Build around architectural corners, create freestanding columns or construct complete cubes for broadcast studios, indoor events, exhibitions and immersive set designs.
With multiple visible faces, content can meet audiences and cameras from more than one direction.
Every specification in the HIRO series exists for a reason. Each feature is engineered to keep the
accurate, the hardware reliable, and the creative vision intact from setup to final
frame.
Because on set, the technology has one job: to disappear into the work and let the
speak for itself.
Richer contrast, accurate color, and lifelike detail reproduction. HIRO meets the visual demands that broadcast and film-grade imaging require.
Eliminates motion artifacts and scan line visibility at any camera shutter speed. What the lens captures is exactly what was displayed.
Finer point-by-point correction, improved low-brightness performance, and precise HDR electro-optical matching. Shadow detail stays clean even at 4 nits.
Full image consistency across extreme off-axis positions. No restrictions on camera placement or
rig
movement.
(rental version has 160°)
LED edges are shielded during assembly and disassembly. Fewer damaged pixels, lower repair costs, longer service life.
Modules swap out from both sides without dismantling the wall. Downtime on set stays minimal.
From high-end virtual production to professional rental, HIRO-Covers the full range without stepping down on mechanical precision or build quality. Each variant is engineered for a specific application and performance requirement, so the right tool is always within reach.
| MODEL | HIRO 1.5Pro | HIRO 1.9Pro | HIRO 2.3Pro | HIRO 2.6Pro | HIRO C 1.5Pro | HIRO C 1.9Pro | HIRO C 2.3Pro | HIRO C 2.6Pro | HIRO CB 1.5Pro | HIRO CB 1.9Pro | HIRO CB 2.3Pro | HIRO CB 2.6Pro |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.95mm | 2.31mm | 2.60mm | 1.56mm | 1.95mm | 2.31mm | 2.60mm | 1.56mm | 1.95mm | 2.31mm | 2.60mm |
| Scan Ratio | 1/10 | 1/8 | 1/6 | 1/8 | 1/10 | 1/8 | 1/6 | 1/8 | 1/10 | 1/8 | 1/6 | 1/8 |
| LED Configuration | IMD, Flip Chip, Common Cathode | SMD1212 Black | SMD1515 Black | SMD1515 Black | IMD, Flip Chip, Common Cathode | SMD1212 Black | SMD1515 Black | SMD1515 Black | IMD, Flip Chip, Common Cathode | SMD1212 Black | SMD1515 Black | SMD1515 Black |
| Max Brightness Calibrated | 1,800nits | ≥1,500nits | ≥1,500nits | ≥1,500nits | 1,800nits | ≥1,500nits | ≥1,500nits | ≥1,500nits | 1,800nits | ≥1,500nits | ≥1,500nits | ≥1,500nits |
| Contrast Ratio | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 | ≥10,000:1 |
| Panel Dimension (H x V) | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm | 500mm x 500mm |
| Panel Resolution (H x V) | 320 x 320 | 256 x 256 | 216 x 216 | 192 x 192 | 320 x 320 | 256 x 256 | 216 x 216 | 192 x 192 | 320 x 320 | 256 x 256 | 216 x 216 | 192 x 192 |
| Power Consumption Max / Average | 120W / 40W | 160W / 55W | 160W / 55W | 160W / 55W | 120W / 40W | 160W / 55W | 160W / 55W | 160W / 55W | 120W / 40W | 160W / 55W | 160W / 55W | 160W / 55W |
| Viewing Angle (H / V) | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° | 170° / 170° |
| Refresh Rate | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz | Up to 15,360Hz |
| Gray Scale | ≥15bit | 16bit | 16bit | 16bit | ≥15bit | 16bit | 16bit | 16bit | ≥15bit | 16bit | 16bit | 16bit |
| Transparency | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid | Solid |
| Serviceability | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Rear | Rear | Rear | Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Curving(Concave & Convex) | Concave 10° ~ Convex 7.5° | Concave 10° ~ Convex 7.5° | Concave 10° ~ Convex 7.5° | Concave 10° ~ Convex 7.5° | Concave 45°-Convex 45° | Concave 45°-Convex 45° | Concave 45°-Convex 45° | Concave 45°-Convex 45° | Corner angel 90° | Corner angel 90° | Corner angel 90° | Corner angel 90° |
| Max Stacking (Panels) | 20 | 20 | 20 | 20 | 12 | 12 | 12 | 12 | 20 | 20 | 20 | 20 |
| Max Hanging (Panels) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Panel Weight | 7.7kg | 7.7kg | 7.7kg | 7.7kg | 9.3kg | 9.3kg | 9.3kg | 9.3kg | 7.7kg | 7.7kg | 7.7kg | 7.7kg |
| Frame Material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Processing Platform | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G | Brompton / NovaStar 5G |
| Operating Environment | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH | -20℃~+40℃ / 10%~90% RH |
