Creative , Dynamic , Limitless .
SPARK turns your ideas into light.
Most LED strips are lighting tools dressed up as video. SPARK is neither. It is a purpose-built LED video strip that operates exactly at the intersection of video content and dynamic light — with the pixel density, brightness, and processing power to carry both roles without compromise.

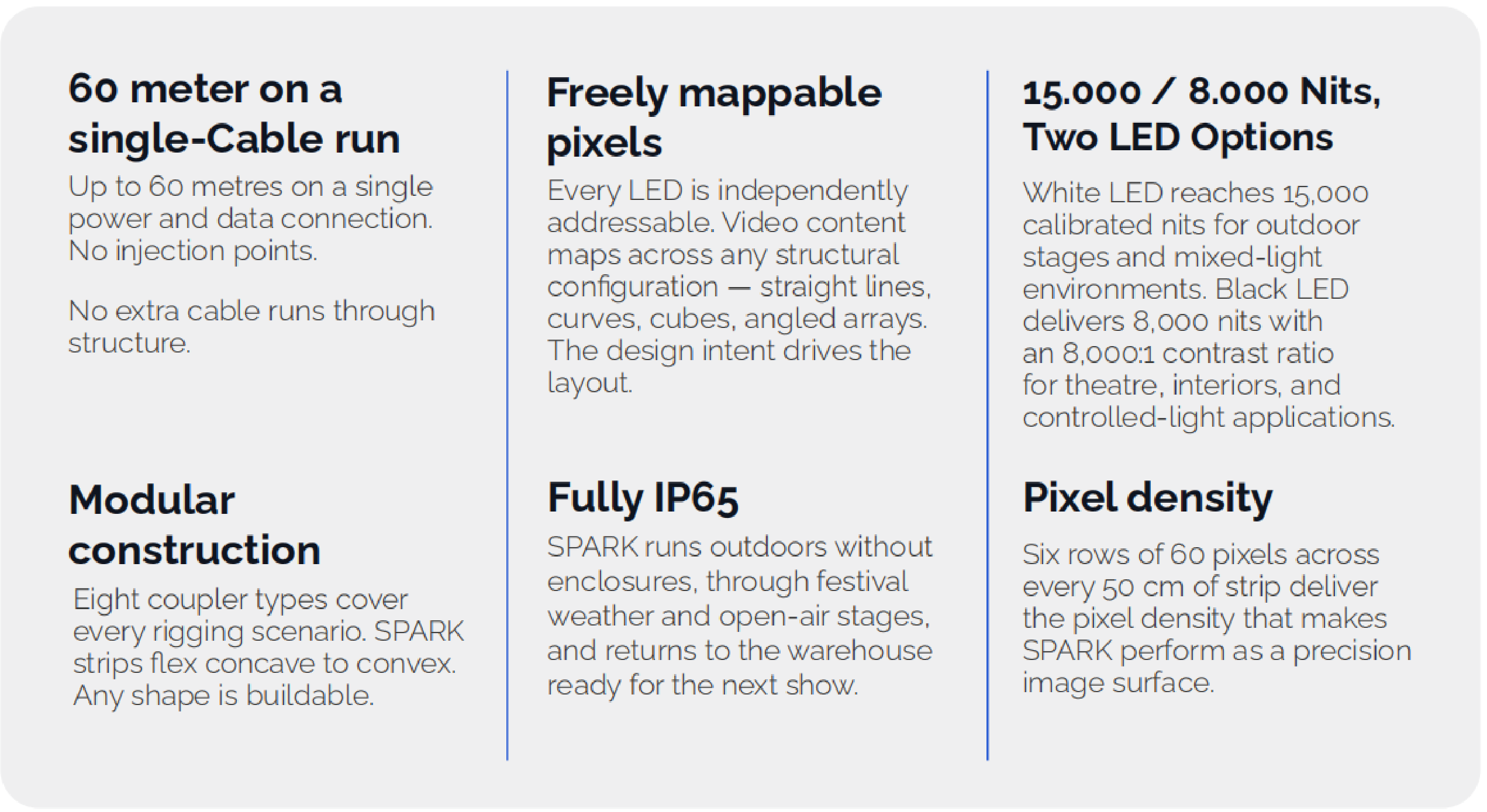

REQUEST DEMOSPARK is built around one principle: remove every obstacle between the designer’s idea and the fnished installation. A 60-metre single-cable run, freely mappable pixels, full IP65 protection, and a modular mounting system gives lighting, set designers and video engineers the tools to build any shape, in any environment, without compromise. Native NovaStar and Brompton compatibility means it connects directly to the platforms your operation already runs.
The integrated slide profile accepts the full mounting line without screws or loose hardware.
Connector,
corner fittings, and wall mounts lock into place on site, fast to build, safe to fly, ready for any
configuration
| Width | 60 mm |
| Depth | 60 mm |
| Height | 60 mm |
| Weight | 0,46 kg |
| Material | Black Anodized Aluminium |

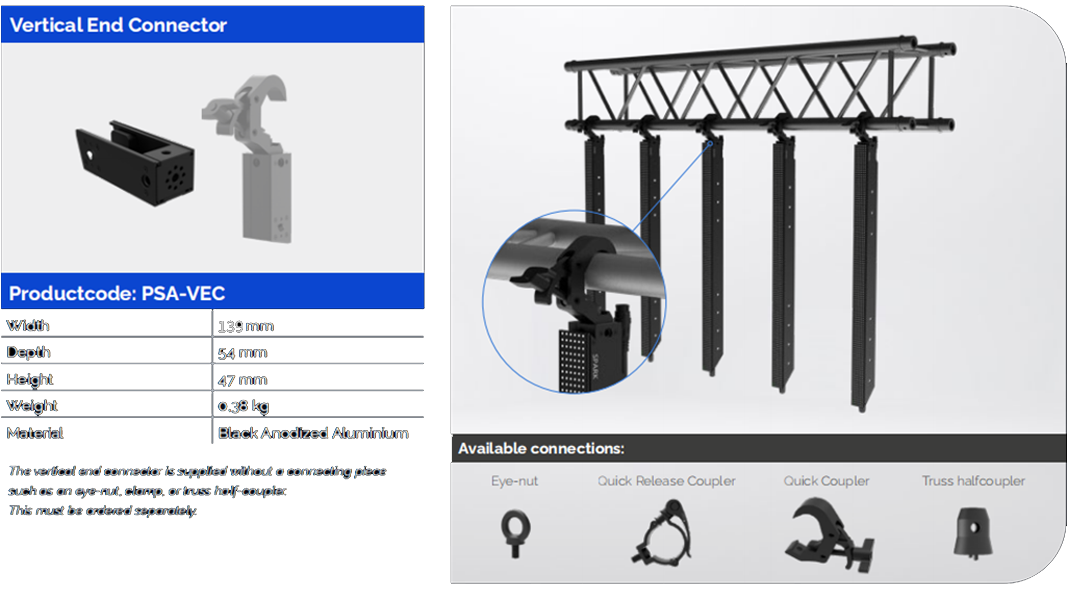

| Width | 133 mm |
| Depth | 54 mm |
| Height | 47 mm |
| Weight | 0,36 kg |
| Material | Black Anodized Aluminium |
| Width | 170 mm |
| Depth | 54 mm |
| Height | 12 mm |
| Weight | 0,27 kg |
| Material | Black Anodized Aluminium |
The Multi Connector supports L, T, X and X-up/down frame connections, with 45-degree rotation on each part for complete creative freedom in three dimensions.

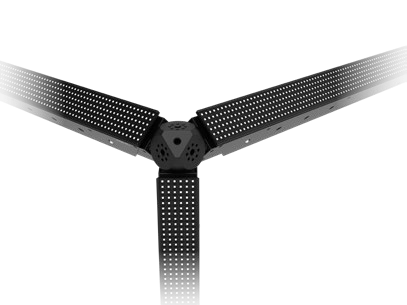

3-way in combination with the Multi Connector and Multi Frame Connectors

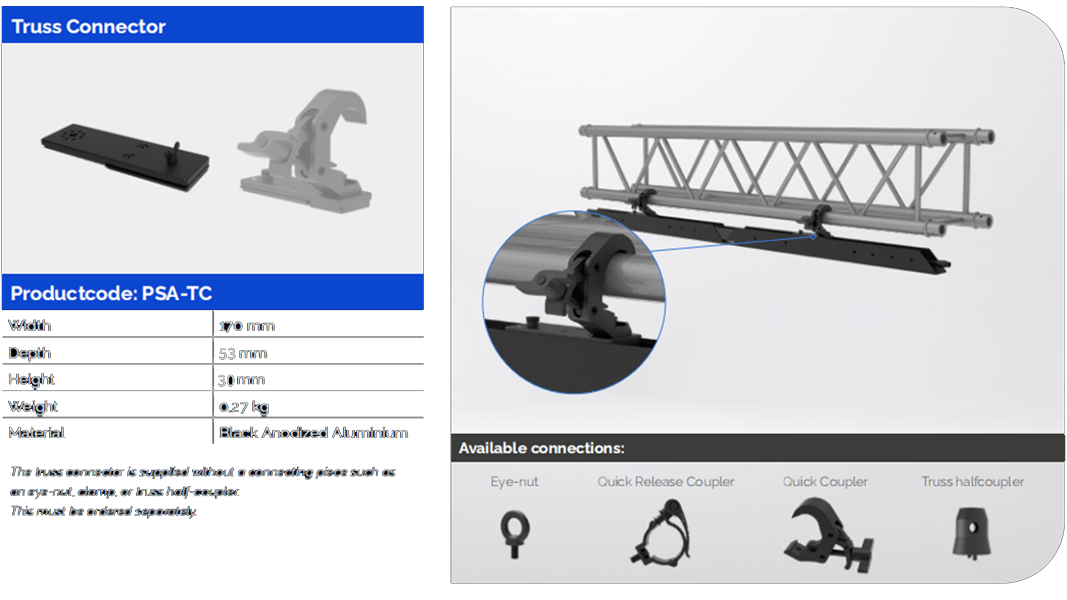

Combination of the Multi Connector and Truss Connector

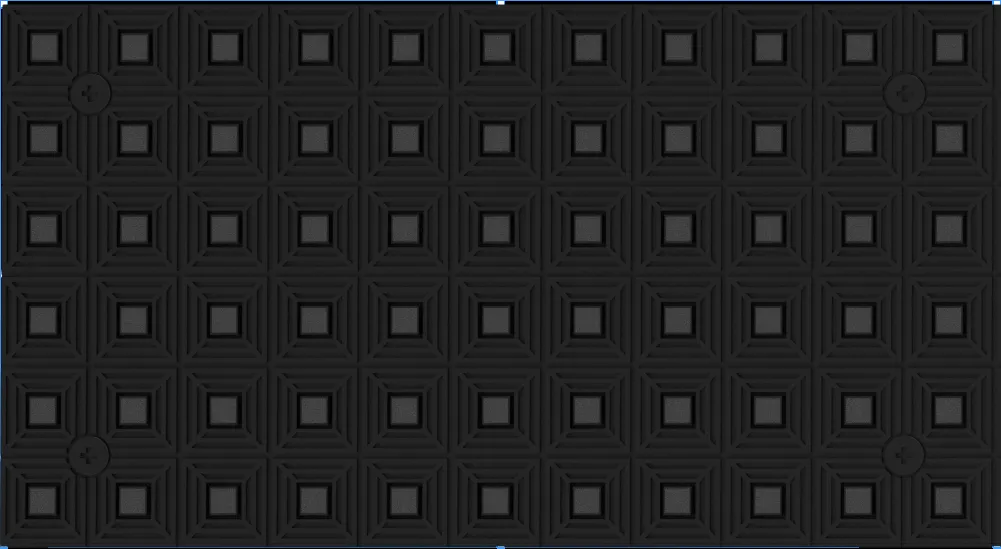

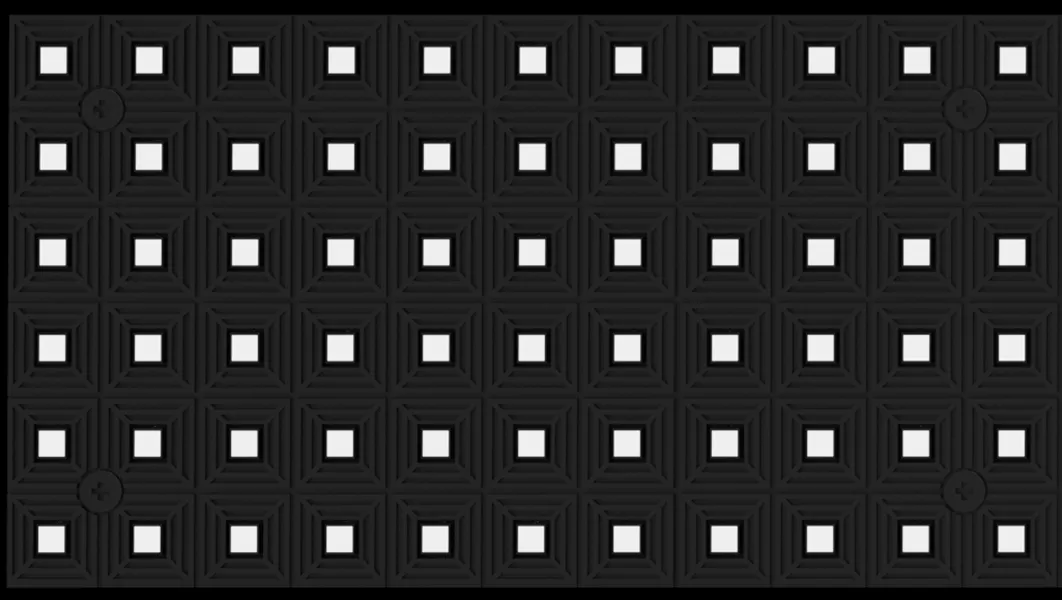

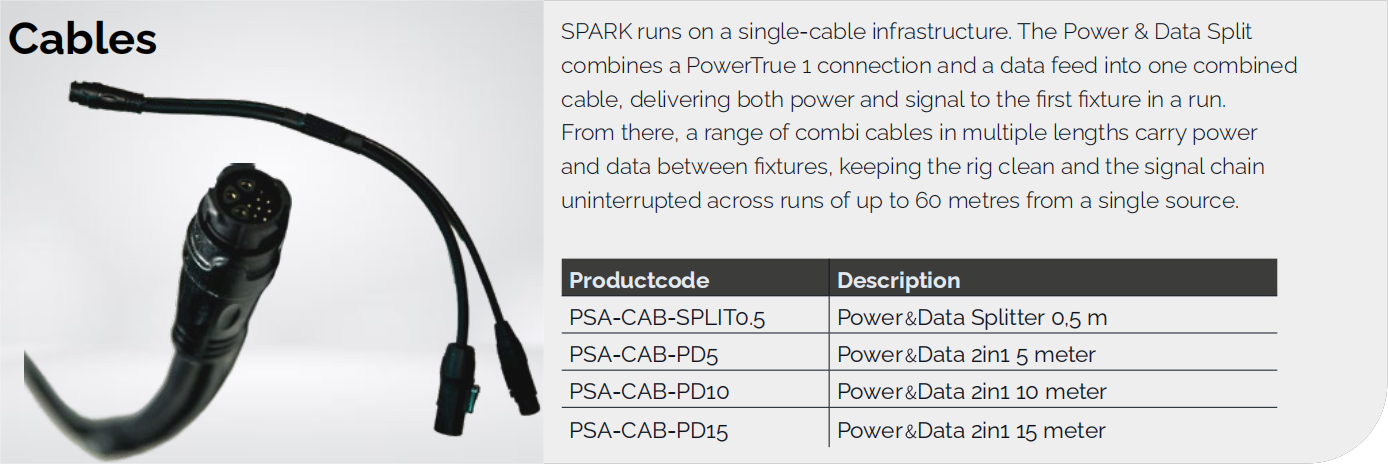

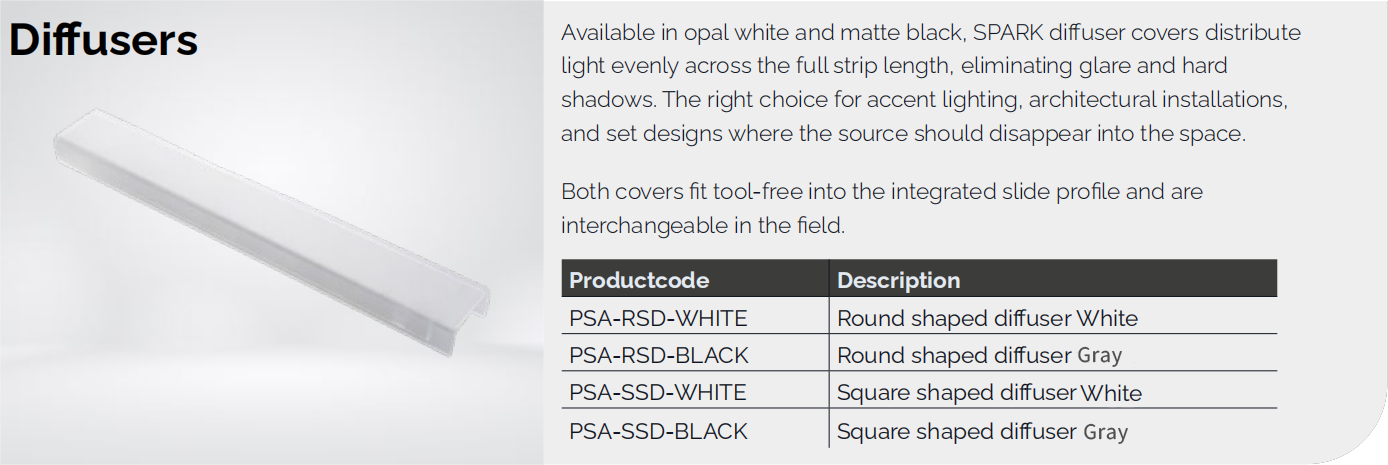

A SPARK rig is defined as much by its finish and its feel as by the fixtures themselves. Diffuser covers determine whether the source appears as a visible line or disappears into the surface, available in opal white and matte black, in both round and square profiles. The cable range maintains a single-cable infrastructure for the signal chain: one Power & Data Splitter at the start of the run, with combi cables in 5-, 10-, or 15-metre lengths carrying power and data between fixtures over distances of up to 60 metres. Both the covers and cables are tool-free to fit and can be swapped in the field.

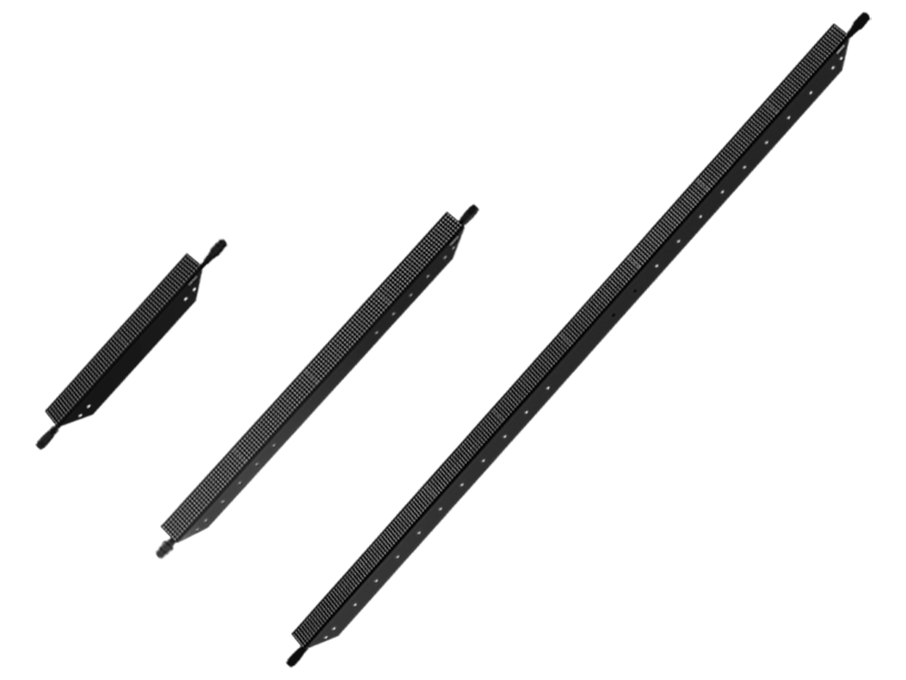

| MODEL | SPARK 50 Black | SPARK 100 Black | SPARK 200 Black |
|---|---|---|---|
| Panel Dimension(cm) | 50*5.9*7.2 | 100*5.9*7.2 | 200*5.9*7.2 |
| Pixel Pitch | 8.33mm | 8.33mm | 8.33mm |
| Weight(kg) | 1.8 | 2.9 | 5.1 |
| Frame Material | Aluminum Profile | Aluminum Profile | Aluminum Profile |
| Panel Resolution (H×V) | 6*60 | 6*120 | 6*240 |
| Scan Ratio | 1/2 | 1/2 | 1/2 |
| LED Configuration | SMD2727 black | SMD2727 black | SMD2727 black |
| Max Brightness Calibrated | 8,000nits | 8,000nits | 8,000nits |
| Contrast Ratio | 8,000:1 | 8,000:1 | 8,000:1 |
| Power Consumption Max | 25W/13W | 50W/25W | 100W/50W |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° |
| Refresh Rate | 7,680Hz | 7,680Hz | 7,680Hz |
| Gray Scale | 15bit | 15bit | 15bit |
| Curving (concave&convex) | Concave 90°~Convex90° | Concave 90°~Convex90° | Concave 90°~Convex90° |
| Max Frame Rate | 120Hz | 120Hz | 120Hz |
| Operating Environment | -20°C~+40°C / 10%-90% RH | -20°C~+40°C / 10%-90% RH | -20°C~+40°C / 10%-90% RH |
| Processing Platform | NovaStar/Brompton | NovaStar/Brompton | NovaStar/Brompton |
| Certifications | CE, ETL, FCC, ROHS, WEEE | CE, ETL, FCC, ROHS, WEEE | CE, ETL, FCC, ROHS, WEEE |
